* Vessel type: 60,000lb Hydro Hoist.
* Location: Comox Bay Marina, Comox, B.C.

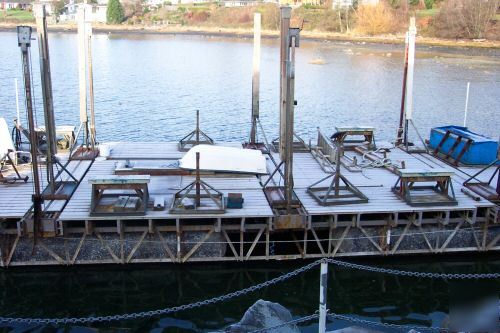

* Unit is fitted with a 50' 4'' X 22'' deck which is sheathed with 2'' X 8'' fir and appears in good condition.
* Catchment for sediment and debris during vessel cleaning is provide at sea ward end and two fiberglass structures provide cover for Sutorbilt Rotary Positive Power Blower and separate tank controls under cover.

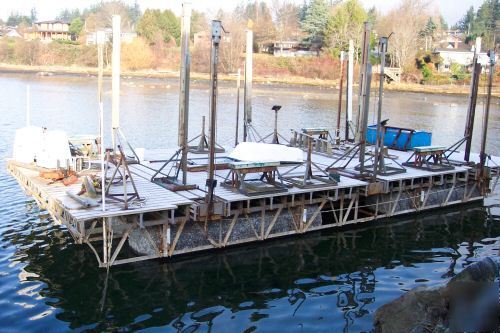

* Three sets of vertical vessel supports in place which are fitted with carpeting cover to reduce vessel abrasion.
* Supports towards center of deck on doubled 2'' X 10'' wood tracks with power to move verticals supplied by manual crank chain and cable drives.
* Verticals braced by 2'' galvanized rounds stock and main vertical supports of 3'' X 2 1/2'' which is mounted on 44'' X 24'' welded bases.
* Deck is fitted with 4X horizontal bench type vessel supports which measure 4' X 1 1/2'' and have 3 1/2'' X 6'' wood decks which measures 2' to top of 3 1/2'' X 6'' wood.
* Deck is supported by 5'' X 2'' X 3/8'' channel with is braced by 2'' channel.
* Stability base of 4' X 3' 6'' and is built of 3'' X 1 1/2'' channel.
* Supports fitted with "Capacity 150000lb./6800kg.
* Hull support provided by 4X adjustable supports which have 3'' X 3'' verticals on 3' 6'' X 3' 6'' bases with four 2'' angle supports.
* Height adjustment provided by buttress thread adjusters with 11'' X 11'' pivoting hull contact pads, two with pile covers and two with exposed plywood surfaces.
* Two supports measure 24'' @ lower section / 49'' @ upper station and are extendable 2' by sliding pin adjustment of lower legs and 1'' screw adjusters.
* Unit is fitted with controls for section tank, two fwd. and two aft. with air from Sutorbilt Blower via 4 X 1 3/4'' neoprene hoses to hard plumbed plastic for tank connections.
* All air pressure is low pressure and there is no need for high pressure lines.
* Unit is driven by 220 volt with power regulated & metered by main dock system.

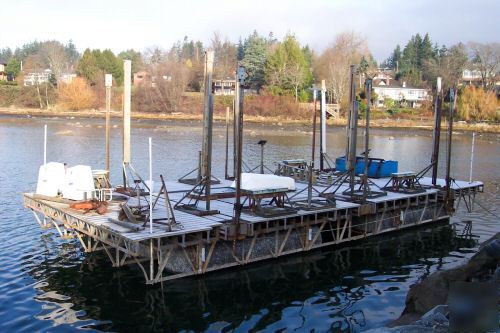

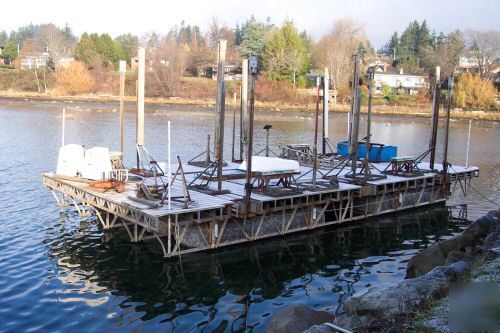

* Flotation is supplied by eight 3 1/2' X 16' heavy wall fiberglass tanks which show no evidence of leakage during course of examination and deck surface raised to allow for lift framing and sacrifical anode replacement.
* Lift comes with extra hardware & equitment which is avalable.
* estamated income for this vessel operational $10-$12,000.00/week.
* Can do up to two boats repair per day.
* Owner willing to assist with preperation for contacts for removal of the vessel.
* Vessel can be barged, towed , or transport by flat bed tuck.
* If you would like more information on this vessel you can contact us by phone @ 1-(***)-337-8517 or 1-(***)-338-6594.
* E-mail us for more information or to book a appointment to view vessel.
