* Compatible with Bell Standard 103
* On-Chip Filtering, Modulation, and Demodulation
* Simplex, Half-Duplex, and Full-Duplex Capability
* Originate and Answer Modes
* Data Rates from 0 to 300 Bits per Second
* Adjustable Carrier Detect Timing
* On-Chip Crystal-Controlled Oscillator
* Automatically Disables Bell-Echo Suppressor
* TTL-Compatible Digital Interface
* N-Channel Silicon Gate Process
* Switched-Capacitor Technology

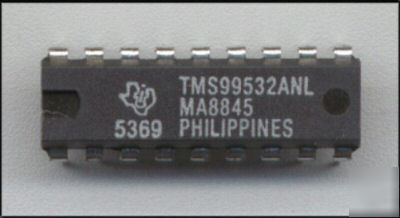

The TMS99532ANL frequency-shift-keyed (FSK) modem is a telecommunication device that transmits and receives binary serial data over the US public switched telephone network using frequency-shift-keyed modulation. The TMS99532ANL is compatible with the Bell 103 Series data sets and will communicate at up to 300 bits per second. It provides all the necessary modulation, demodulation, and filtering required to implement a serial asynchronous communication link.
It is designed for users who are not experts in the telecomunications field. This device is an easily implemented cost-effective alternative to standard discrete moem design.
