Distance between spindles: 32mm

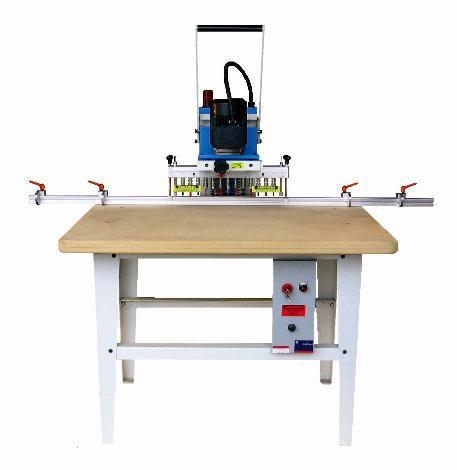

BT-0613-Spindle boring head, 1.4 HP motor, case hardened steel drive (13) spindles spaced on 32 mm centers, 3,400 RPM spindle speed; a great table model line drill.
50" x 35" table, 72" long back fence with (4) mechanical flip stops.
(2) Manually operated index pins for continuous line boring, large hand lever for manual 2-1/2" stroke; collets for 10 mm dia. shank bits.
Drill bits not included. Add $ 6.50 each for 5 mm bits. Machine requires (13) bits (6 left & 7 right rotation) for a total additional price of $ 84.50. Stand included, total height 56"
Toola's Horizontal head movement significantly reduces setup time, and the fence does not need to be squared between jobs .Most of the other single line boring machines require squaring of the fence prior to each job. All of the Toola table models incorporate Toola's On Demand Power Up Featuere, which is a energy efficient micro switch system that automatically turns on the spindle drives when the operator sequences the machine .A red power indicator light is illuminated informing the operator when the machine is powered up, at which time the machine can be cycled .Power is supplied to the motors, the spindles rotate,and the holes are drilled. This feature significantly reduces machine wear during non-productive periods of time.
