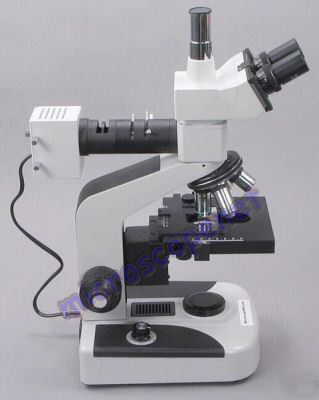

Metallurgical Trinocular Microscope
Find it later under "Favorites" menu in your browser.
This microscope is designed for the specimens/slides that are not transparent. In this case, the optical system is not able to receive the transmitted lights from the bottom so the reflected EPI lighting system is introduced. The light goes down through the objective and reflected by the specimen and travels back to eyepieces and camera(if mounted) through the same objective. Unlike other metallurgical microscopes on the market, this one has a quaduple nosepiece, instead of a triple nosepiece. It also comes with 5 high quality PLAN field achromatic objectives (the top level of objectives) which provide up to 1600x magnification. It gives you wide range of the magnifications and more flexibilities. The long vertical focusing travel distance (2") and large stage movement range allow thick and large specimens. It also has a photo port/tube to accomodate cameras for the computers or the monitors. The power supply is 100v-240v universal for worldwide use. This microscope is perfect for metallurgical and electronic industries.
* High quality professional optical glass elements
* 30°inclined 360°rotatable trinocular head
* Easy to mount USB camera (electronic eyepiece)
* 10 levels of magnification: from 40x to 1600x
* 5 plan field achromatic objectives DIN 4x, 10x, 40x(S), 63x(S), 100x(S,Oil)
* 2 pairs of eyepieces: WF10X and WF16X
* Sliding interpupillary distance adjustment
* Both left and right adjustable ocular diopter
* Brightness adjustable EPI reflected lighting system
* Adjustable aperture diaphragm
* Adjustable field diaphragm
* Convenient field diaphragm centering thumb screws
* 3 color (yellow, green, blue) filters included
* Extremely high resolution sharp images over a wide field view
* All metal mechanical components
* Coaxial coarse and fine focus adjustment with adjustable tension control
* Focusing knobs on both sides
* Long focusing travel distance (vertical stroke) for thick specimens
* Large stain-resistant double layer stage
* 3 metal stage plates included
* Worldwide universal voltage range
* Product GS and CE approved
* Manufacturer in business 30+ years
* Head: 30°Inclined 360°rotatable trinocular
* Eyepieces: wide field WF10X and WF16X
* Objective: plan field achromatic DIN 4x, 10x, 40x(S), 63x(S), 100x(S, Oil)
* Total magnification: 40x-64x-100x-160x-400x-630x-640x-1000x-1008x-1600x
* Reflected illuminator: 6V/20W halogen
* Large stain-resistant double layer stage 5-1/2" x 5-1/2" (140mm x 140mm)
* Large stage moving range: 2-13/16" x 1-17/32" (72mm x 40mm)
* Stage vertical stroke (focusing travel distance): 2" (51mm)
* Metal stage plate dimension: 3-1/8" x 1-9/16" (80mm x 40mm)
* Focus adjustment: Coaxial coarse & fine knobs on both sides with adjustable tension control
* Power supply: 100V-240V, 50/60Hz universal (US and Canada plug)
* Dimension: 12" x 8" x 19" (30.5cm x 20.3cm x 48cm)
* Net weight: 17lb 10oz (8kg)
* Trinocular metallurgical microscope
* 5 plan field achromatic objectives: 4x, 10x, 40x(spring), 63x(spring), 100x(spring, oil)
* Eyepiece: a pair of WF10X and a pair of WF16X
* Power cord (US and Canada standard)
* 3 color filters, yellow, green, blue
* Extra halogen bulb (6V/20W)
Optional Parts and Accessories (sold separately):
* Digital USB2.0 cameras for computers
Note: Before you purchase any parts or accessories, please check the Compatibility Table below.
Click the button above to view the list of parts and accessories for this product V83M
