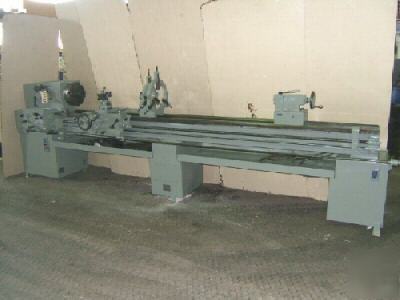

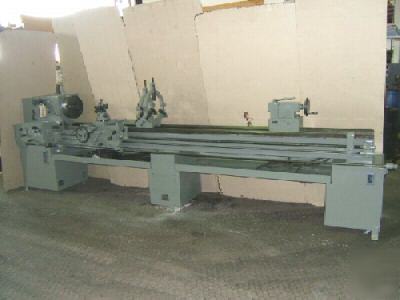

19" x 120" cc, CARROL-JAMIESON, 20-900 RPM, (2) S.R., Chucks, 1977 Our stock number: 19463 Carroll-Jamiesan Lathe MODEL..................................Master Model GH 18"
Carroll-Jamiesan Lathe SERIAL NUMBER..........................6282 Year: 1977
Carroll-Jamiesan Lathe GENERAL SPECIFICATIONS
Swing Over Bed.........................19"
Swing Over Cross Slide.................13-3/4"
Center Distance........................132"
Spindle Speeds.........................(12) 20 to 900 RPM
Spindle Nose...........................
Spindle Hole...........................1-11/32"
Longitudinal Feeds..................... .002" to .152"
Cross Feed............................. .002" to .136"
Threads................................(48) 3 to 184 TPI

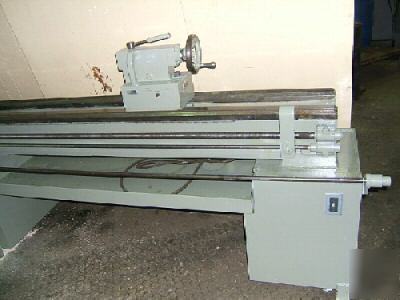

Tailstock Center.......................No. 3 MT
Carroll-Jamiesan Lathe EQUIPPED WITH

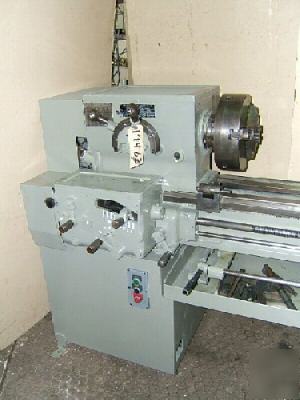

12" 3-Jaw Chuck, 15" 4-Jaw Chuck
Carroll-Jamiesan Lathe Approximate Weight.....................4000 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**********PLEASE READ BELOW**********
**Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge. **
**Skids shown in pictures are not included with the item. **
If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased.
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008
