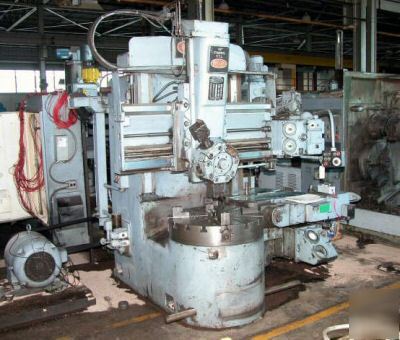

36" BULLARD "DYNATROL" VERTICAL TURRET LATHE
MANUFACTURED 1968, S/N 32160, RACO Stock Number R015004
SWING WITH SIDE HEAD ABOVE TABLE - 39"
SWING WITH SIDE HEAD BELOW TABLE - 46"
HEIGHT UNDER TURRET FACE - 40-3/8"
VERTICAL TRAVEL OF TURRET HEAD - 26"
HORIZONTAL TRAVEL OF TURRET HEAD - 43-3/4"
TURRET HEAD TOOLPOST HOLES - 2-3/4"
VERTICAL TRAVEL OF SIDE HEAD - 28-3/4"
HORIZONTAL TRAVEL OF SIDE HEAD - 23-3/4"
SPEEDS - ( 20 ) - 13 TO 468 RPM
FEEDS INFINITELY VARIABLE - .001" TO .250"/REV.
POWER INDEXING FIVE SIDED TURRET HEAD
POWER INDEXING FOUR SIDED SIDE HEAD
HEIGHT SHOWN BELOW IS WITH RAIL UP AND PENDANT UP
AUTOMATIC LUBRICATION PENDANT CONTROL
50 HP MAIN MOTOR 5 HP RAIL ELEVATION
MAN-AU-TROL MISCELLANEOUS TURRET TOOLING
VARIABLE RAPID TRAVERSE TO MAX. OF 9' PER MIN.
HARDENED AND GROUND WAYS ON CROSS RAIL, COLUMN AND SWIVEL
36" 4 JAW MANUAL CHUCK ( UNIVERSAL & INDEPENDENT )
APPROX. DIMENSIONS (IN.): 92 X 104 X 137
*** IN GOOD RUNNING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** PRICE INCLUDES STANDARD 30 DAY RETURN PRIVILEGE ***
*** FREE LOADING UNTO OPEN TRUCK ***
