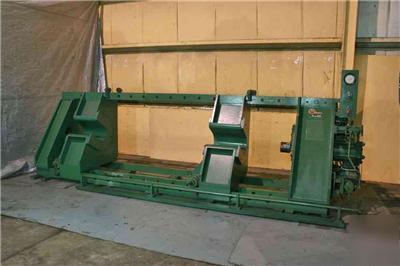

100 TON K R WILSON HORIZONTAL WHEEL PRESS 1974
SERIAL ....................................... 2923
MODEL ........................................ 100
YEAR NEW ..................................... 1974
CAPACITY ..................................... 100 TON
STROKE ....................................... 20"
CYLINDER BORE ................................ 8"
DISTANCE FACE OF RAM TO RESISTANCE BLOCK ..... 148"
DISTANCE BETWEEN STRAIN BARS ................. 50"
THRU HOLE IN RESISTANCE BLOCK ................ 10"
INCLINED ..................................... YES
ADJUSTMENT HOLES IN STRAIN BARS .............. 10" CENTER
HYDRAULIC MOTOR .............................. 7-1/2 HORSEPOWER
