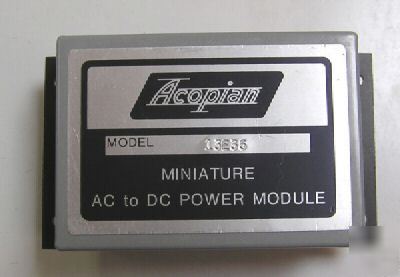

Acopian 13E35 13 VDC 350 mA Linear Mini-Encapsulated

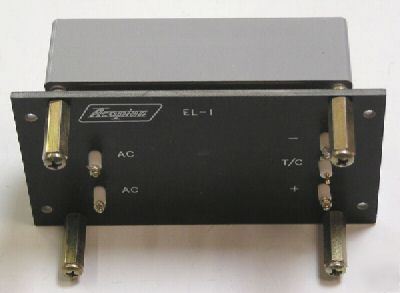

Acopian model 13E35 is a 13 VDC, 350 mA Regulated Mini-encapsulated power supply. It is designed for PC Board mounting, but includes an EL-1 Adapter so that it can be used as a stand-alone power supply. Also includes Operating Instructions.
Input voltage is 105-125 VAC, 47 to 420 Hz, single phase. The output voltage is factory preset to within ±1% of the nominal output voltage.
The T/C terminal can be used to trim the output more precisely to the nominal voltage rating by connecting an external resistor from the T/C terminal to either the + or - terminal.
The output is floating. Either positive or negative terminal may be gounded.
Regulation (Load/Line) is ±0.1%/0.05%
