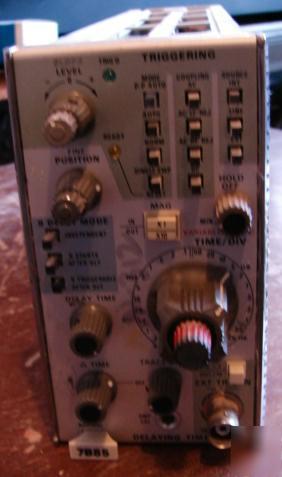

Good Condition, Working, Tek 7B85 Delaying Time Base Vertical Plug-In Modules Serial Number B090151
The 7B85 Delta Delaying Time Base Plug-In is recommended for use with 7700, 7800, and 7900 Mainframes to provide optimum bandwidth / sweep-speed compatibility, but may also be used in any slower 7000-Series Mainframe. · Delta Time Measurements with CRT Readout · Delay Time Measurements with CRT Readout · Vertical Trace Separation between Two Delayed Sweeps · Calibrated Time Base: 1 ns to 5 s/div with 1.5% accuracy (50 ns to 0.5 s/div) · Triggering to 400MHz · Variable Trigger Holdoff · Peak-to-peak Auto Triggering
Performance Characteristics of the 7B85
Module (proprietary interface/bus)
http:// /DataSheet/TEKTRONIX/TEKTR_7000Series82651.pdf
