Multiwavelength Gain Module EDFA

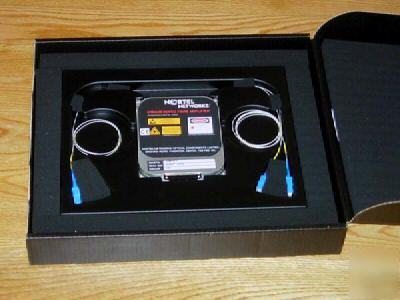

Nortel MGMFP-1BHC28 Multiwavelength Gain Module EDFA
Nortel/Bookham’s MultiWavelength Gain Modules are supplied with the EDFA optical, optoelectronic and electronic functions built in, requiring only a +5 V power supply for operation. They allow sophisticated optical amplifier card level solutions to be implemented very easily.
Through selection of certain component values within the gain block, the designs can be rapidly customised to meet specific amplifier requirements for output power and gain. All of the amplifiers also have an integrated optical output monitor port.
A combination of a pre-amplifier and a line amplifier gives the option of Mid-Stage Access (MSA) to allow insertion of network components such as add-drop multiplexers, dispersion compensators or optical attenuators.
* Semi-custom design flexibility
* Fast gain and transient control modes
* Single +5 V supply operation
* Low gain ripple over temperature
Configuration Manual (Please click the link below)
http:// /Files/Nortel%20MGM%20EDFA.pdf
* Nortel MGMFP-1BHC28 Multiwavelength Gain Module x 1
More questions, please email us
* 10 day DOA Guarantee by BoteQ.com
* Local pick up is not offered.
