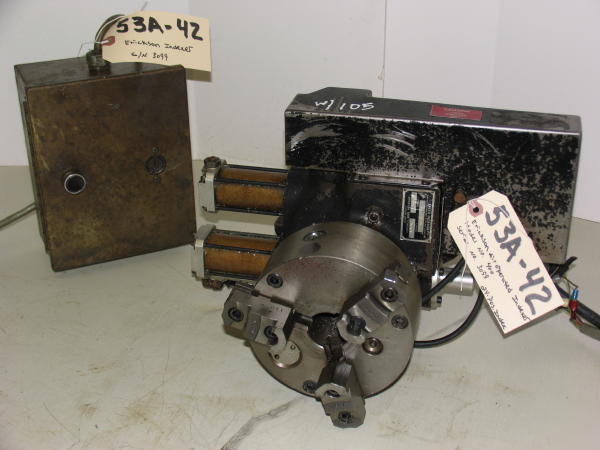

6" Erickson Horizontal/ Vertical Indexer
This head can be operated from
a signal from a machine or from a
limit switch. It can be mounted
either horizontally or vertically.
Center Height in Vertical Position: 4"
Total Height in Horiz. Position, with Chuck: 11"
Number of Positions on Master Index Plate: 24
Indexing Positions (no plates required): 4, 6, 8, 12, & 24
Diameter of Hole Thru Indexer: 3/4"
Overall Size of Indexer: 16" x 11" x 10"
Weight of Indexer, Approx.: 67 Lbs.
Machine Interface Connection Box with Actuator Button
Cushman 6" 3-Jaw Self-Centering Manual Chuck
Air Operated Indexing Mechanism
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
