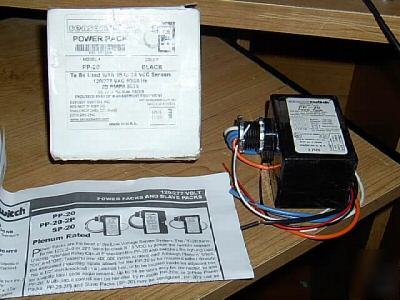

EscrowUnlt © AP6.0This is for one new SensorSwitch PP-20 - 20A Power Pack w/ Relay Circuit Protection. 120 AMP, 120/277 VAC, 50/60 Hz, Plenum Rated.
Power Packs are the heart of the Low Voltage Sensor System. The PP-20 transforms 120, 240 or 277 Volts to class II 15 VDC to power the remote sensors. Utilizing Patented Relay Circuit Protection the PP-20 also switches the lighting load "On" and "Off": Tested to over 400,000 cycles at rated load! Although Plenum Rated, the elongated mounting nipple allows for the PP-20 to be mounted either directly thru a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one PP-20. Multi-circuit control can be handled by multiple PP-20's, or 2-Pole Power Packs (PP-20-2P) and Slave Packs (SP-20) may be configured. PP-20's can be wired continuously hot (line side), or on the switch leg (load side) without nuisance delays upon turn
