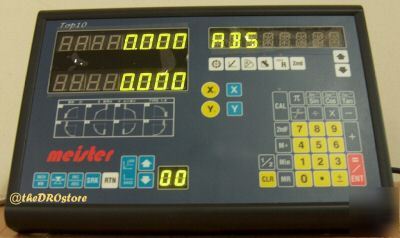

Meister TOP 10 2-axis MILL DRO with 2 pieces of MS4 Standard linear scales.
Linear scales have TRAVEL stroke from 4 to 36 inch.
Suitable for most types of milling machines.
Please email if you have any doubts.
Overall length of scale, OAL = Travel + 5" [only for information].
â–² In this photo, the DRO set to 0.005 mm
â–² Press the INCH/MM button and the DRO will display 0.0001 Inch
This Optimun BF20 belongs to Gerold from Austria.
â–² Dave installed the Top10 3-axis on his Super X3.
One year warranty from factory.
Swivel mounting arm, dust cover & power cord for display console.
Extruded alum. coolant guards.
We deliver to Australia, Austria, Belgium, Columbia, Czech, Canada, Denmark, Estonia, France, Finland, Germany, Hungary, Ireland, Israel, Italy, India, Japan, Malta, Malaysia, Netherlands, Norway, New Zealand, Philippines, Poland, Qatar, Switzerland, Slovenia, Spain, Sweden, SAF, Serbia & Montenegro, Slovakia, Thailand, UK and US.
This EMCO Compact 8 belong to Peter from Germany:
This photo is from Sonny in Canada:
* 1/2 - find the center (value is divided by 2).
* RTN - Sleep / Pause to return to Normal mode and back again.
* ABS/ INC - absolute/increment co-ordinate interchange.
* Mechanic Zero Position Memory: re-establish work-piece zero position after power failure.
This Hafco belong to Tim from Australia:
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Quantizing error: +/- 1 count
* Temperature range: Operating 0 ~ 40 C,
* Auto-switching power supply.
* Display: 8 digits LED display; green color
* Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm)
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: ±0.005 mm or 0.0002"(at 20˚ C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec
* Output Signal: Square wave signals. TTL output.
* Standard 3m long armoured cable.
This Bridgeport belongs to Holescreek(USA):
Image hosted by Photobucket.com
10um (0.0004") Linear Glass Scales
Travel Stroke 6-¾", 7-⅞", 10", 12", 13-¾", 15-¾", 17-¾", 30", 36", 38" and 40" are ex-stock.
* I also accept check and bank draft or wire transfer.
* Factory will take 2 ~ 3 days to process your order.
* Return accepted for refund or exchange.
* Please read my Return Policy below.
