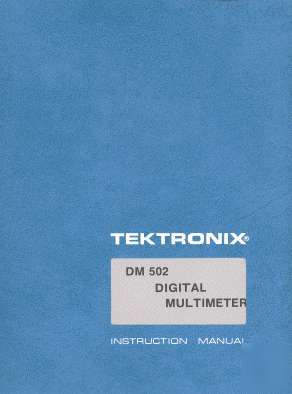

Tektronix DM502 Plug-In Service and Operating Manual in both Very High and in Standard Resolution PDF on CD
Why settle for just one resolution? You get them both!
For High Res page samples from this specific manual, click HERE.
(No need to "email for samples," so no need to worry about getting sold to a SPAM list!)
(Please read FAQ or "About Me" Page)
Includes not only the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF, plus a fully bookmarked, hyperlinked and text-searchable scan of the entire "TM500 Rear Interface Data Book" and the publication "Suggested Power Supply Circuits for The TM500 Blank Plug-In Kit", but you also get the manuals for the TM501, TM-503, TM504, TM506, TM515 and TM5006 Power Modules, all at no additional charge!
These PDF manuals cover the Tektronix DM502 Plugin. They are scanned from the original Tektronix factory manual. All information available in the original manual is available here.
Two PDFs of the manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi black and white
Schematics at 600dpi black and white
Text with photos at 600dpi grayscale with contrast adjusted
Schematics, board overlays that have color notes at 600dpi 256 colors
Foldout pages supplied in -BOTH- 17x11 -AND- 8.5x11 scans
Fully bookmarked and hyperlinked
Chapter-Page -AND- sequential page numbering systems
The very high resolution looks very nice, but for many purposes uses excessive resources. You can copy the large file to the hard drive in an attempt to achieve acceptable performance, but having that be a necessity is certainly of no advantage to you. Therefore, we include a second scan in standard resolution, much better for research and bench use.
The second scan is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
We send both resolutions on the CD. You'll receive the large "very high resolution" "reproduction quality" file, plus the smaller, faster and often more useable text-searchable version. ALL original manual pages are supplied.
