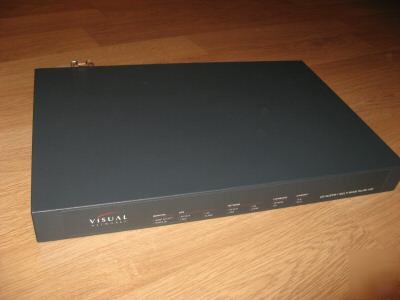

807-0203 ANALYSIS SERVICE ELEMENT

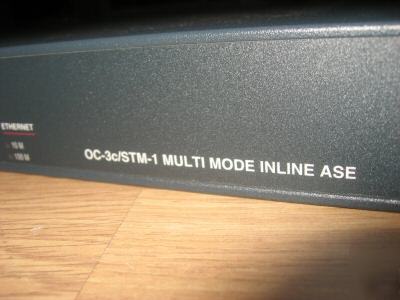

OC-3c/STM-1 MULTI MODE INLINE ASE

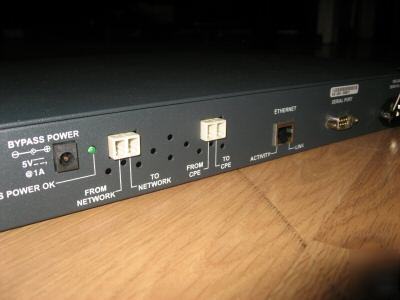

2 DUPLEX LC MULTI MODE CONNECTIONS ON BACK
ALL THE DETAILS START ON PAGE 23 & 24 OF THE LINK TO THE SPECS BELOW.
http:// /products/Literature/ASE_Specification_Guide.pdf
inline probe ASE supports multimode ATM OC-3c
physical lines, with SONET and SDH standards, at
speeds up to 155 Mbps. This ASE supports Multi-
Protocol software for deployment in standard ATM
networks and IP Transport software for deployment in
ATM-based networks that use IP switching. The ASE
also includes LinkSafe technology to protect circuit
integrity in case of an ASE outage, as well as power
The OC-3c/STM-1 inline probe ASE is designed
for deployment at the network demarcation point
between a subscriber’s CPE and the WAN. It can be
deployed in ATM and mixed frame relay-ATM environments.
The fi gure below shows the ASE positioned
at the edge of an inter-worked frame relay-to-ATM
network, allowing for SLA messaging between a frame
relay DLCI and an ATM VPI/VCI.
OC-3c inline probe ASE specifcations
Dimensions 1 EIA unit (1.75â€) high x 19†wide rack-mountable
Data Rate to 155 Mbps synchronous
Timing Mode Derived externally from the network.
Operating Temperature 0o to +40oC (+32o to +104oF)
Clearance Requirement Minimum of 3†(7.62 cm) space on sides.
Operating/Storage Humidity 10% to 90% non-condensing
Cell Scrambler Enable or Disable
Connectors 2 Sff Duplex-LC, Network Tx and Rx, CPE Tx and Rx
Tx Average Output Power -16dBm (typical) Measured with 62.5μ/120
Rx Sensitivity -33dBm (typical)
Baud Rate 57600, 19200, or 9600 bps
Electrical Format EIA RS-232, DTE
Connector 9-pin D, male per EIA-574
Connector 8-pin modular jack: RJ-48
