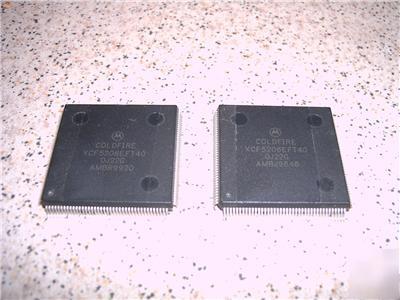

FREESCALE MPU 32BIT COLDF 40MHZ 160-QFP MCF5206EFT40
The MCF5206e integrated microprocessor combines a Version 2 ColdFire core with several peripheral functions such as a DRAM controller, timers, parallel and serial interfaces, and system integration. This device is an enhanced version of the MCF5206. Not only does the MCF5206e provide a performance upgrade to the MCF5206 due to the increased 4 KByte I-cache and 8 KByte SRAM and increased frequency, but this device also integrates an additional Multiply Accululate (MAC) unit, hardware divide, and two-channel DMA to the device while maintaining pin compatibility with the MCF5206.
* Multiply-Accumulate Module and Divide Unit
* 4 KByte Direct-Mapped Instruction Cache
* DRAM Controller, supports EDO and page node DRAMs
* Two Universal Synchronous/Asynchronous Receiver/Transmitters (UART)
* Dual 16-Bit General-Purpose Multimode Timers
* Fully Static 3.3V Operation with 5V tolerant inputs
* 160 Pin QFP Package - Pin-compatible with MCF5206
* 8-bit general-purpose parallel I/O port
* Available at 40 and 50 MHz
More information is at freescale homepage. Please click here
It is sold $12.97417 USD at Digikey.
