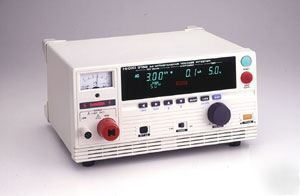

*Hioki 3158 AC Withstanding Voltage HiTester -HTI *
Guarantees electrical and electronic equipment Safety
This electrical safety test instrument series is designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. A multitude of automation and labor-saving features are provided to ensure effective testing for a wide variety of requirements and test conditions. Select the most appropriate model for your applications.
Safety standards compliance testing
Stores up to 20 sets of test conditions
Test function Voltage endurance test
Testing voltage 0 to 2.5 kV / 0 to 5.0 kV AC, dual-range configuration
Voltage testing method Zero-toggle switch
Transformer capacity 500 VA (maximum 30 minutes)
Voltage adjustment Manually adjusted slidac
Measurement items Voltage: 0 to 5 kV AC (Average value rectified, effective value display), Current: 0.01 to 120 mA AC (Average value rectified, effective value display)
Judgment function Contents: UPPER-FAIL / PASS / LOWER-FAIL (Digital setting window comparator method)
Timer section Setting range: 0.5 to 999 seconds
Interfaces EXT I/O, EXT SW, RS-232C
Display Fluorescent tube display (digital), Analog meter
Monitor function Output voltage, detection current
Power supply 120 V AC, 50/60 Hz (3158-01), 220 V AC, 50/60 Hz (3158-03), 230 V AC, 50/60 Hz (3158-04),
Dimensions, mass 320 mm(12.60 in)W × 155 mm(6.10 in)H × 263 mm(10.35 in)D
3158-01: 16 kg (564.4 oz), 3158-03/-04/-05: 18 kg (634.9 oz)
Accessories H.V. TEST LEAD 9615 (high voltage side and return, 1 each), Power cord (1), spare fuse (
