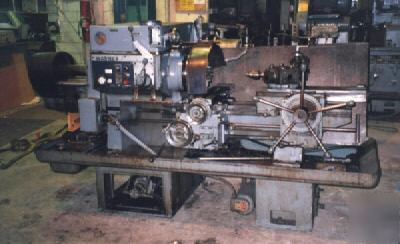

#4 WARNER & SWASEY "SQUARE-HEAD" RAM-TYPE TURRET LATHE
New 1968, Serial No 2309788, Lot 10, Model 4,
10" 3-Jaw Chuck Mounted On Rear
Hole Thru Spindle...................... 2.44"
Bar Capacity, Round.................... 2"
Bar Capacity, Square................... 1.375"
Bar Capacity, Hexagon.................. 1.75"
Chuck Diameter......................... 10"/12"
Swing Over Bed Ways.................... 18.125"
Swing Over Guides...................... 15.75"
Swing Over Cross-Slide................. 9.5"
Carriage Longitudinal Travel (Z-Axis).. 21.19"
Cross-Slide Cross Travel (X-Axis)...... 9"
Turret Longitudinal Travel (Z-Axis).... 12"
Spindle-Face To Turret, Maximum........ 32.25"
(32) Spindle Speeds, Range............. 30 to 1866 RPM
Carriage Long Feeds (Z-Axis)........... .003 to .029 IPR
Cross-Slide Cross Feeds (X-Axis)....... .002 to .020 IPR
Turret Longitudinal Feed (Z-Axis)...... .003 to .032 IPR
Spindle Motor, Horsepower/Rpm.......... 15/7.5 HP/1700/880 RPM
Electrical System...................... 220/3/60
Floor Space Required, L x D............ 9'8" x 5'9"
Weight, Approximately.................. 6115 LBS
