Price is for 1 NEW / In Original Box/Crate "Mega Arm Barrier Gate" by DC Solutions-Chamberlain-Elite-LiftMaster ! 12 Foot Boom and Batteries Included!
12 FOOT BOOM !!!!!!!!!!!!!!!!!!!!!!!!
Reflective Stripe for Boom!!!!!!!!!!!!!!!!
2 Batteries/Back-Up!!!!!!!!!!!!!!!!!!!!!!!
Available Upon Request: 15' package with counter weight, 15' boom and batteries $1699.00. E-mail info@gatemotors.cnet if interested.

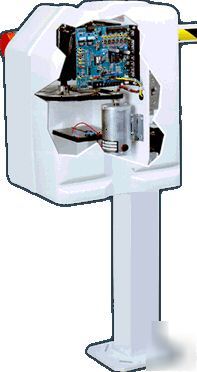

The MEGA ARM parking barrier gate operator by DC SOLUTIONS, INC. was made to be unique in the industry through innovative design and solid engineering. Its single State of the Art universal electronics control board eliminates the need for mechanical limit switches, relays and contactors. Arm position is limited by a magnet mounted on the drive shaft which is sensed by two magnetic sensors on the electronics controller. Its full service controller is capable of accepting inputs from telephone entry, loop detectors, card readers, push buttons, barcode scanners, and is equipped with multiple vehicle memory buffer. Built in regulated 24VDC backed up power provided for accessories (detectors, receivers, card readers). The standard break away arm design can allow the arm to be reused many times. Finally, its modern design and cutting edge technology will make the MEGA ARM the perfect choice for all your parking control applications.
Specifications and features...
The DC SOLUTIONS model MEGA-ARM barrier style parking gate operator is unique in the industry. Setting the MEGA-ARM apart are many features that make it the front runner in its class. With standard features like:
* Built in battery backup - inherent 24 VDC backup power with regulated 24VDC for accessories.
* High torque 24 volt Permanent Magnet DC motor.
* Full service controller with eight inputs and LED indicators for loops, card reader, radio, etc...
* Continuous duty operation for all applications (even during power failures).
* Reversible arm direction for right or left handed operation.
* Instant Reverse Device (IRD) monitor senses obstructions going open and close.
* Automatic open of gate arm when power is lost if desired (With 15 sec. delay selection)
* Raise gate input memory will memorize multiple vehicles-ideal for barcode scanners & AVI.
* Ability to have arm STOP in close travel if tailgating is sensed at close loop.
* Break away mounting design for the 12 - 15 ft. X 3" tubular aluminum arm.
* All rust proof aluminum construction with powder coat baked on enamel.
* Molded Polyethylene UV stabilized cover never needs wax or paint (white or colors).
* Direct drive gear reducer eliminates many parts that might otherwise fail.
* Microprocessor (RISC) based electronics with watch dog reset timer.
* State of the art MOSFET motor drive technology, NO contactors or relays.
* Dynamic motor braking to preserve arm positioning.
* Soft start and stop in open and close travel motions.
* No limit switches to fail-uses magnetic (Hall Effect) sensors to monitor arm position.
* Maximum Run Timer for motor (MRT) with anti-tamper protection in closing direction.
* Each unit configurable as master or slave operator.
* Safe 24 VDC low voltage motor and control wiring.
* Open architecture PCB with space for OVERDRIVE CPU for future expanded options.
* LED diagnostic center for easy on-site trouble shooting.
* Closing timer adjustable from 1-33 seconds with on / off selection.
* Transorb diodes on all inputs for protection against transient voltage spikes.
* U.L. LISTED (U.S.), C-U.L. LISTED (CANADA)
* 5 year perforation warranty on cover and chassis with 1 year on electronics and mechanism.
Requires (2) 7 Amp Hour 12 Volt DC (Yuasa NP7-12 or Equivalent)
1/4" Heavy Duty Rust Proof T-6 Aluminum Construction
Removable Heavy Duty Molded U.V. Stable Polyethelene (White Standard, Colors Optional) Meets UL-746C, 94-5VO
Polyester Polyurethane Baked On Power Coat (White Standard)
Breakaway Design - Reusable Arm Attaches With Nylon Nuts
3" O.D. Round Extruded Aluminum
12', 15' Available With Or Without Yellow/Black Stripes (15' Requires Internal Counter Weight)
4" O.D. Soft Padded Arm - Yellow Padded Sleeve (Uses 2" O.D. Tube)
12', 14' (Both Require Adaptor Collars)
White Polyester Polyurethane Baked On Powder Coat
High Torque 1/3 HP 24 VDC Permanent Magnet (TENV) - With Permanently Sealed Bearings
Direct Drive - No Crank Arms Or Rubber Bumpers
All Inputs Protected By Ultra Fast Transorb Surge Arrestors
Opto Isolated - Open, Close, Free Exit, Safety, Shadow, Aux Open Has Memory/Non-Memory
K1 Relay (Option), 24 VDC Regulated Accessory Power (500MA)
One 12 Pin Removable, Three 4 Pin Removable
Select On/Off With 1 - 33 Seconds Via DIP Switch Selection
Magnetic Hall Effect Sensors - No Mechanical Roller Switches
State Of The Art Mosfet Motor Drive Technology
All AVI, Laser Barcode Scanners, Radio Receivers, Card Readers, Ticket Machines, Loop Detectors, Push Buttons, Token Machines (Note: Up To .5 Amp (500MA) 24 VDC Backed Up Accessory Power Available to Power Above Devices.)
Aux Input Memory/Non Memory, Timer On/Off, Auto Raise Arm If Power Fails With 15 Sec Delay/Fail Secure - Right Hand Operation/Left Hand Operation, Relay Pulse On OLS/Relay On Except When On CLS
U.L. LISTED (U.S.), C-U.L. LISTED (CANADA)
UL-325 (U.S.), CSA 22.2#247 (CANADA)
K1 Relay With Programmable Operation
100 Watt Heater With Automatic Thermostat (For Use In Areas Where Temperatures Fall Below 15° F)
