New honeywell V4055A1098GAS power actuator -factory( )


Poster: 1763897452@iowa-industrial.com

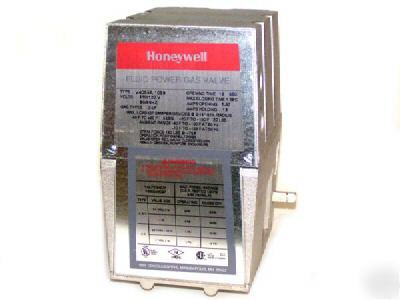

New honeywell V4055A1098GAS power actuator -factory( )

The V4055 Actuator, when used with the V5034, vE5000a, V5097 or V5055 Valve, is rated for final safety shutoff service.
The V4055 Actuator can be used with the characterized guide model of the V5055 or V5097 Gas Valve to enhance lightoff smoothness.
* The standard model has an opening time of 26 seconds at 60 Hz or 32 seconds at 50 Hz. A fast-opening model is available with timings of 13 seconds at 60 Hz or 16 seconds at 50 Hz.
* Maximum closing time is one second, which meets code, standard and insurer requirements.
* Models available with damper shaft, with or without spring return; shaft extends out both sides and rides in Teflon-like Delrin bushings; used with standard 7616BR Damper Crank Arm.
* Red OPEN indicator attached to actuator stem shows when valve is even slightly open; yellow SHUT indicator on valve stem shows only when gas valve is fully closed.
* Models available with adjustable max flow limit switch.
* Ambient temperature rating is -40°F to +150°F (-40°C to +66°C) for 60 Hz models and -10°F to +158°F (-23°C to +70°C) for 50 Hz and 50160 Hz models.
* Valve and actuator combinations can be mounted in any position, with the exception of the 220 to 240 Vac, 50160 Hz models, which are mounted vertically.
* Models available with factory-installed single pole double throw (spdt) field-adjustable Auxiliary Switch. Field-addable Auxiliary Switch kits are also available.
* Standard enclosure meets NEMA I (1P30) requirements; models available with NEMA 4 weatherproof enclosure.
* V4055D and high pressure V4055E with Proof-of-Closure Switch and V5055N5097C or E with valve seal overtravel interlock (double seal) to meet specific code, standard and insurer requirements. a VE5000 is a European manufactured and approved valve for European use only.
Your typical applications for v4055A1098 in combination with a V5034, VE5000a, V5055 or V5097 Gas Valve would include, but not limited to, controling the gas supply to commercial and industrial burners.
Seller will not be responsible for typographical or other errors or omissions regarding products specifications, prices or other information.
