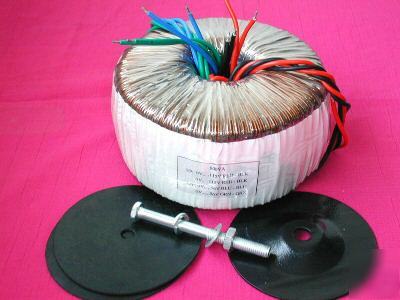

TEST CONDITION: Apply variable voltage to primary coil (115V terminals) from 100-160VAC at 60Hz. No load on secondary coils.
1. Primary V = 100VAC, Primary I = .03A
2. Primary V = 110VAC, Primary I = .03A
3. Primary V = 120VAC, Primary I = .04A
4. Primary V = 130VAC, Primary I = .05A
5. Primary V = 140VAC, Primary I = .07A
6. Primary V = 150VAC, Primary I = .11A
7. Primary V = 160VAC, Primary I = .23A
TEST CONDITION: Apply dielectric meter between primary coils and secondary coils; and increase voltage up to 3500VAC. No initiate any spark.
TEST CONDITION: Input 120VAC 60Hz to the primary coil; parallel 2 secondary coils, 5 ohm 250W resistors as dummy load and room temperature at 25 degree C. Temperature rises 10 degree C after an hour test at load test #5.
1. Primary I = 0.04A, Secondary V = 64.2VAC at 0.0A, Power = 0 Watt
2. Primary I = 1.72A, Secondary V = 63.0VAC at 3.15A, Power = 198 Watt
3. Primary I = 3.37A, Secondary V = 61.8VAC at 6.18A, Power = 382 Watt
4. Primary I = 6.43A, Secondary V = 59.7VAC at 11.94A, Power = 713 Watt
5. Primary I = 7.65A, Secondary V = 58.8VAC at 14.34A, Power = 843 Watt
Dimension – 5.5†Diameter x 2.8†High.
