FREE eBOOK (worth US$15) with every Milling DRO system puchase.
Visual Manual eBook: Install DRO on a Milling Machine
DRO_TRADER IS AN IMPORT AND EXPORT COMPANY IN THE MACHINE TOOL INDUSTRY.
We are traditionally in the Asia Market selling through Machine Distributor. In order to extend our low price to our
which we can pass the saving directly to you. With our location in Asia, we have lower overhead than in USA, UK, Australia....Etc.
That's how we give you GOOD PRODUCT at a GOOD PRICE... Coz...
2. WHAT DOES THE PACKAGE INCLUDE ??
~ 2 Axis Digital ReadOut (QTY:1)
~ High Precision Glass Scale (QTY:2),
~ English Manual - Setup & Operation (QTY: 1)
~ Plastic Dust Cover for DRO (QTY: 1)
~ Mounting Brackets for Glass Scale (QTY: 4)
~ Glass Scale Protective Cover (QTY: 2)
~ Mounting Arm for DRO (QTY: 1)
~ Power Cable for DRO (QTY: 1)
~ Screws, Washer, Cable ties and other accessories for installing the system are included
3. WHAT LENGHT OF GLASS SCALE ARE AVAILABLE ??
Glass Scales are available in these travel/measuring length:
Metric: 50, 120, 170, 220, 270, 320, 370, 420, 470, 520, 620, 750, 820, 920mm.
Inches: 2, 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3, 36.2inches.
(Physical Length is 142 mm (5.6") longer)
You can CHOOSE ANY 2 PIECE OF GLASS SCALE FROM THE ABOVE.
IF YOU NEED OTHER LONGER LENGTH, JUST SEND ME AN EMAIL FOR A QUOTE.
To know what travel length scale will suits yout machine, you can visit my blog:
http://mtechdro.blogspot.com/2007/08/faq-what-scale-length-will-suit-my.html

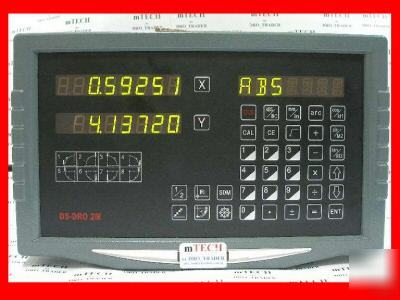

4. WHAT ARE THE PHYSICAL FEATURES OF THE DIGITAL READOUT ??
~Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof)
~3x 7-Segment Green LED Display Windows
5. WHAT ARE THE ELECTRICAL FEATURES OF THE DIGITAL READOUT ??
~Power Supply Voltage: AC 100V ~ 230 V, 50 Hz ~ 60 Hz (Automatic Detection)
~Input signal: TTL square wave.
~Frequency multiplication: 4x.
~Input signal frequency: >100KHz.
6. WHAT ARE THE OPERATION FEATURES OF THE DIGITAL READOUT ??
YOU CAN CHOOSE EITHER DRO-2M (MILLING DRO) OR DRO-2L (LATHE DRO)
~200 work piece zero position memory
~Drilling hole in a oblique line
~Linear error compensation function
~Linear error compensation function
7. WHAT ARE THE FEATURES OF THE HIGH PRECISION GLASS SCALE ??
~Resolution : 5um (0.005mm).0002 inch
~Grating pitch: 0.02mm (50LP/min)
~Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
~Reference marks at interval of 50mm
~Response Speed: 60m/min or 40ins/sec
~Cable length: Armoured 3 Meter (about 9 feet)
THESE ARE HIGH QUALITY SCALES THAT HAVE BEEN CHECKED BY LASER !!!
~ Telegraphic Transfer/Remittances
Please allow 1~2 days for processing your order.
10. WHAT WARRANTY IS GIVEN FOR THIS SYSTEM ??
~1 year INTERNATIONAL WARRANTY
~Items to be return within 14 Days of receipt
~All content must be returned to be eligible for refund.
~Refund will be process only after return has been received.
12. Sample Photos of mTECH DRO installation (Click to see more photos at my Blog)
RF31 milling machine by Al Betzwieser (USA)
Harbor Freight HF 40576 14x40 lathe. by Ed Boysun (USA)
Birmingham lathe from John Stanke (USA)
Bridgeport Milling Machine from David Ralston (UK)
Harrison L5A (1961) from Ross Crymble (UK)
mTECH Scales used wit Fagor NV DRO
Bridgeport milling machine - Aaron Nelson (USA)
Harbor Freight Milling machine : ZAY7032G - Mike Deines (USA)
Complete package, all the hardware, mounting brackets, double sealed scales."
"Fast and accurate delivery. Carefully packed goods. "
"Very nice guy. Friendly, quick responses and quick in sendi the merchandise. A++"
If you need any other items not listed, please send us an email, we will try our best to help you.
