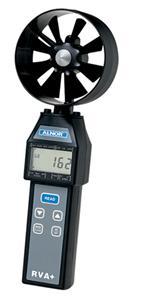

Alnor RVA+ Rotating Vane Measures Air Vel.Volume & Temp
Alnor RVA+ Rotating Vane Measures Air Velocity Volume & Temperature
The rotating vane anemometer measures air velocity, air volume, and temperature in English or metric units. The 4-inch head automatically averages velocity and volume readings, making it an essential tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters. Sweep mode quickly and reliably provides one averaged reading of velocity or volume over a large measurement area.
It features an attached swivel head that rotates so the display always faces the operator.
* Measures air velocity, air volume, and temperature
* Automatically averages velocity and volume readings
* Displays temperature and velocity readings simultaneously
(6.8–9174 x 1000 m3/hr, 1.9–2548 x 1000 l/s)
(0.001 m/s under 10.00 m/s, 0.01 m/s otherwise)
±(1% of reading +4 fpm [0.02 m/s])
4-digit, 0.45-in. (11-mm) high LCD with 2.5-digit,
0.15-in. (4-mm) high temperature indicator
Four AA-size alkaline, approx. 24 hours
continuous use or optional AC adapter
