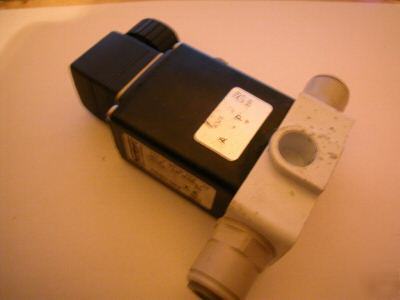

2/2 way direct acting pivoted armature solenoid valve with isolating diaphragm
3/8" (10mm) inlet and outlet fittings
Wetted valve internals of non-metallic materials, with EPDM seals and polypropylene body
1/4 BSP parallel ports (john guest fittings can be removed)
3-pin DIN connector rated to IP65 can be positioned through 360° in 90° increments
Duty cycle intermittent operation 40% 30 min
Power consumption 30VA (in-rush), 15 VA/8W (hold) a.c, A 8W d.c.
Fluid temperature range -30 to +80°C
Suitable for: alkalis and acids to medium concentration; alkaline washing and bleaching agents
