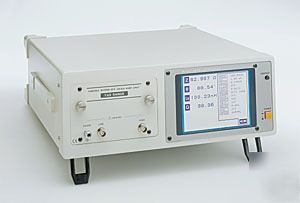

*HIOKI 3535 LCR Meter HiTester Analyzer*
Testing source frequency 100kHz to 120MHz
Comparator output GP-IB and RS-232C Standard
Measurement Items |Z|, |Y|, Q, Rp, Rs(ESR), G, X, B, ?, Ls, Lp, Cs, Cp, D(tan ?)
Measurement ranges 1k? range 10k? range 100k? range
Z, R 100m? to 2k? 1k? to 20k? 10k? to300k?
C 0.66pF to 15.9µF 0.066pF to 1.59nF 4.4fF to 159pF
L 0.133nH to 3.18mH 1.33µH to 31.8mH 13.3µH to 477mH
Measurement Frequency 100 kHz to 120 MHz ( 100Hz to 100kHz steps )
Basic accuracy |Z|: ±0.5 % rdg. , phase angle: ±0.3°
Output Impedance 50 ±10 ohm (at 100 kHz)
Measurement Signal Level 5 mV to 1 V, 20 mA max. ( up to 10.00 MHz )
5 mV to 500 mV, 10 mA max. ( above 10.01 MHz )
200 µA to 20 mA: 1 V max. ( up to 10.00 MHz )
200 µA to 10 mA: 0.5 V max. (above 10.01 MHz)
Setting Resolution: 10 µA steps
Measurement Time 6 ± 1 ms (nominal)
Other function Monitor Function, Limit Function, Average Trigger Function, Load Compensation Function, Key Lock Function, Comparator, Classification ( BIN ) Measurement, Correlation, Compensation Function, Panel Save and Load, Measurement Value Storage, Zoom Display Function, Continuous Measurements, Audible Beeper, Numerical Display, Digit Setting Function, Display Setting Functions, Printer Function
Interfaces GP-IB, RS-232C and EXT I/O ( standard )
Power 100 to 240 VAC, 50/60 Hz, 50 VA
Dimensions and Mass Approx. 360W×130H×360D mm, 8.3 kg
Supplied accessories Power cord
