The image “http:// /images/MILLERMATIC%20350%20MIG%20(%20MED).jpg†cannot be displayed, because it contains errors.

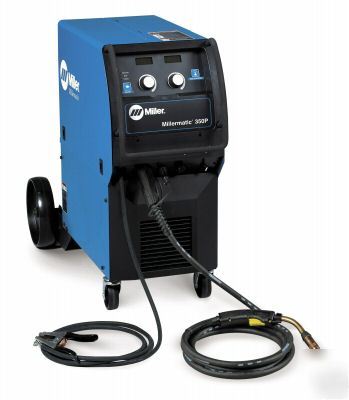

First single- or three-phase power Millermatic that welds material from 22 gauge to 1/2 in thick in a single pass. Perfect for fabrication, manufacturing, maintenance and repair.
New! Bernard® 15 ft. Q300 MIG gun with Centerfire™ consumables included!
* 300-amp, 100% duty cycle, air-cooled, 15 ft cable.
* Superior arc performance and gas coverage, longer consumable life and an easy-to-change tip design improves productivity and reduces overall welding costs.
* Light weight and cooler running for greater operator comfort.
Millermatic 350/350P Bernard System FAQs (PDF)
Aluminum Pulse Hot Startâ„¢ automatically provides more arc power to eliminate a "cold start" that is inherent with aluminum starts. (Millermatic 350P only)
The smartest, most productive Millermatic ever!
Adjustable Crater feature optimizes crater size for steel, stainless and aluminum applications.
Crater Time Delay allows deactivation of crater feature for tack or small welds.
Superior Aluminum Performance on thin material as low as 19 gauge with a direct connection for optional XR® push-pull guns or Spoolmatic® spool guns.
Exclusive Gun-On-Demandâ„¢ Allows you to use either a standard MIG gun or a Miller Spoolgun without flipping a switch. The machine senses which gun you are using when you pull the trigger. No upgrade is required. Machine comes spoolgun ready right out of the box.
Built-in pulsed MIG programs (Millermatic 350P)- All programmed information is restored after each power up.
Easy-to-use digital user interface with backlit words and alpha-numeric displays for showing words and numbers.
SharpArc® optimizes the size and shape of the arc cone, bead width and appearance and puddle fluidity.
Fan-On-Demandâ„¢ cooling system only operates when needed reducing power consumption and keeping internal components cleaner.
Internal air flow that protects electrical components and PC boards from dirt, dust, debris... greatly improving reliability.
LVCâ„¢ Line Voltage Compensation
Keeps output of the power source constant regardless of fluctuation in input power ± 10%.
"Tip Saver" short circuit protection shuts down output when tip is shorted to the work. Extends contact tip life and protects internal components from damage. Trigger reset permits quick reset at torch rather than unit.
For aluminum welding, the optional XRâ„¢-A or Python Push-Pull Guns provide the ability to utilize 12 in. rolls of aluminum inside the Millermatic 350/350P for extended aluminum welding time and reduced labor time from changing 1 lb. rolls of aluminum wire.
* Requires 1- or 3-Phase power
* 300 A at 32 VDC, 60% duty cycle, 1- or 3-Phase
* 50 - 700 IPM (1.3 - 17.8 m/min)
* Bernard® Q300 15 ft (4.6 m) MIG gun with extra Centerfire™ contact tips
* 10' Industrial power cord (without plug) for single- or three-phase
* Factory-installed gas solenoid
* Argon mix regulator/flow meter
* Factory-installed, low-mounted running gear/cylinder rack
* .035/.045 in reversible V-groove drive rolls (order u-groove drive rolls for aluminum welding)
