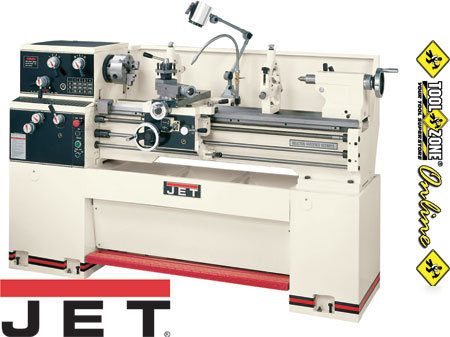

This Jet 321830 GH-1440W-1 14" Swing 40" Centers 3HP 1Ph 230V Geared Head Engine Lathe is Brand New Never Used!
Note: Liftgate Service is not included!
If you need Liftgate Service you will need to arrange Liftgate Service with the trucking company.
You will be able to arrange Liftgate Service with the trucking company as soon as we e-mail you with the tracking information!
Tool Zone, Inc. WILL NOT PAY FOR LIFTGATE SERVICE !
Jet GH-1440W-1 Lathe Features:
• Uniquely designed exclusively by JET
• Hardened and ground gears are featured in the headstock and gearbox
• Dl-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
• Headstock is constantly oiled during operation
• Splined, not keyed, shafts are utilized in the headstock
• Gearbox gives large threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
• Spindle actuation control is apron mounted
• Inch-metric dials are standard
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Tolerance test certificate included
• 6" 3-Jaw Direct Mount Chuck with Top Reversing Jaws
• Coolant System with Splash Guard
• Centers and Headstock Center Sleeve
Jet GH-1440W-1 Lathe Specifications:
• Swing Over Cross Slide (in.): 8-1/2
• Swing Through Gap (in.): 20
• Distance Between Centers (in.): 40
• Spindle Taper (With Sleeve): MT-5 (MT-3)
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 40 - 1,800
• Number of Longitudinal and Cross Feeds: 40
• Range of Longitudinal Feeds (in./rev.): 0.0012 - 0.0294
• Range of Crossfeeds (in./rev.): 0.0003 - 0.0103
• Number of Inch Threads: 40
• Range of Inch Threads: 4-112TPI
• Number of Metric Threads: 22
• Range of Metric Threads (mm): 0.45 - 7.5
• Maximum Tool Size (in.): 5/8 x 5/8
• Maximum Compound Slide Travel (in.): 3-1/2
• Maximum Cross Slide Travel (in.): 6-3/8
• Maximum Carriage Travel (in.): 37-1/2
• Tailstock Spindle Travel (in.): 4-3/4
• Taper in Tailstock Spindle: MT-3
• Steady Rest Capacity (in.): 3-3/4
• Follow Rest Capacity (in.): 2-3/4
• Width of Bed (in.): 10-1/2
• Overall Dimensions (in./L x W x H): 73-3/4x29-1/2x47-1/2
Jet 2 Year Metalworking Warranty:
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
Tool Zone Carries a Full Line of Jet Lathe Accessories - Just Call Us At (***) 252-8500
Some of The Accessories Available For This Lathe:
• 5C Lever Type Collet Closer
We Can Get You Any Jet Lathe Accessory You Are Looking For!
