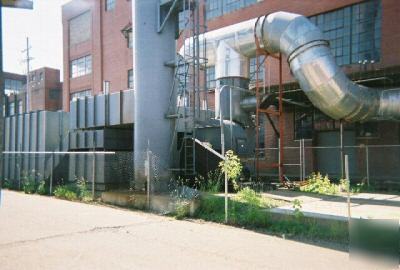

Used regenerative thermal oxidizer-70,000 scfm capacity


Poster: 1460713790@iowa-industrial.com

Used regenerative thermal oxidizer-70,000 scfm capacity

Maximum design flow- 70,000 scfm @ 70 deg F
Pneumatic poppet valves for flow direction changes through media
Main exhaust fan with 250 hp motor
Allen Bradley 1336 Plus variable frequency drive for main motor
Control panel with Allen Bradley PLC and modem for remote troubleshooting/support
Combustion blower with 30 hp TEFC motor
Fresh air damper with electric actuator
Fuel gas injection for increased fuel efficiency
Stand-alone exhaust stack w/ladder and maintenance platform
Complete owner's manual with electrical and mechanical drawings.
the removal process destroys it, so new must be purchased). Note:
If purchase refurbished, Kono Kogs will provide the following VOC destruction warranty and perform the following work:
Provide a 95% VOC Destruction efficiency guaranteed for 90 days or completion of a
stack test, whichever is sooner. (A higher destruction efficiency is available).
Flow Control Valve/Pneumatic System:
Test pneumatic valves and repair/replace as necessary
Pressurize gas train and leak test. Repair all leaks.
Test components in gas train and repair/replace as necessary
Test UV scanners, repair/replace as necessary
Clean or replace burner sightports
Test ignition transformers and spark igniters and replace as necessary
Bench test main motor and replace bearings as necessary
Bench test combustion blower motor and replace bearings as necessary
Test all actuators, regulators, pressure switches, etc. and replace as necessary
Many other fixes that arise through the act of refurbishment
Weight: Approx. 275,000 lbs (including ceramic media); 125,000 lbs empty
Dimensions: Approx. 67 feet long, 27.5 feet wide, 13 feet tall (excluding stack)
Electrical Requirements: 460/3/60 at 350 KVA
Natural Gas requirements: 18,700 cfh max 5 psi
Compressed Air requirements: 400 CFH @ 90 psi
Refurbished: Adwest 70,000 scfm RTO……...... $ 369,000.00 FOB Green Bay, WI
Optional: Sandblast/Prep & Repaint………………………….... $25,000.00
