• Combination Air Velocity/ Temperature* Probe with Integral Cable
• *On Temperature and Pressure Models
• Measure Velocity, Temperature and Static Pressure
• Direct Air Velocity Measurement with Up to ±2% Full Scale Accuracy
• ±0.2% Full Scale Repeatability
• NiCad Battery and Charger Included
The OMEGA-FLO® HHF600 Series of portable air velocity meters combine rugged, accurate air flow measurement in a compact, portable package. These meters feature direct air velocity measurement–no temperature or pressure compensation is required. Several HHF600 models are available to combine temperature and/or static pressure measurement, along with air velocity measurement, in either English or metric units. All OMEGA-FLO® kits are fully portable, with NiCad batteries and a 115/230 Vac recharger included. HHF600 units feature multiple scales, making them ideal for use in both low and high velocity environments. The velocity sensor is a rugged platinum RTD network, resistant to dirt, contamination, and breakage. HHF600’s are suitable for field use in many applications, including hood velocity, clean rooms, HVAC systems, windtunnels, and in product development.
Pressure adaptor is a fixed orifice which slips over the velocity probe. Air leaking out of hole in duct through adaptor determines pressure in duct.
±2% full scale: -20 to 60°C (-4 to
140°F); 5 to 30 psia ±4% full scale:
-55 to -20°C (-67 to -4°F); 40 to 121°C
Accuracy: Temperature ±1% full scale
Accuracy: Pressure ±2% full scale
Repeatability: ±0.2% full scale
0.2 sec to 63% of final velocity value
15 sec to 63% of final temp value
120 mm (4.72") Taut Band Analog
Sensor: -18 to 121°C (0 to 250°F)
330 to 508 mm(13" extends to 20")
Probe: Sensor: Glass Coated Ceramic,
Platinum and Epoxy Construction
304 SS probe, 2.5 m (8 ft) cable
NiCad rechargeable batteries, up to
8 hours operation between charges
Dimensions: 305 H x 394 W x 89 mm D

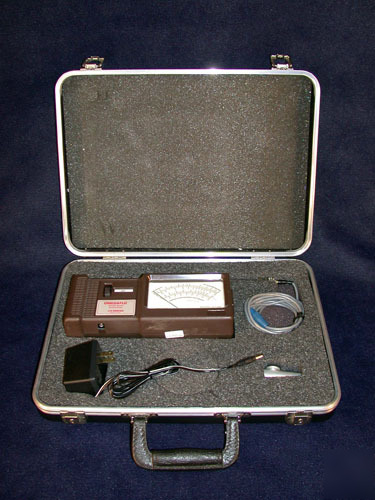

Complete with printed manual (not pictured)
For more information from the manufacturer, please go here:
http:// /Green/pdf/HHF600.pdf
