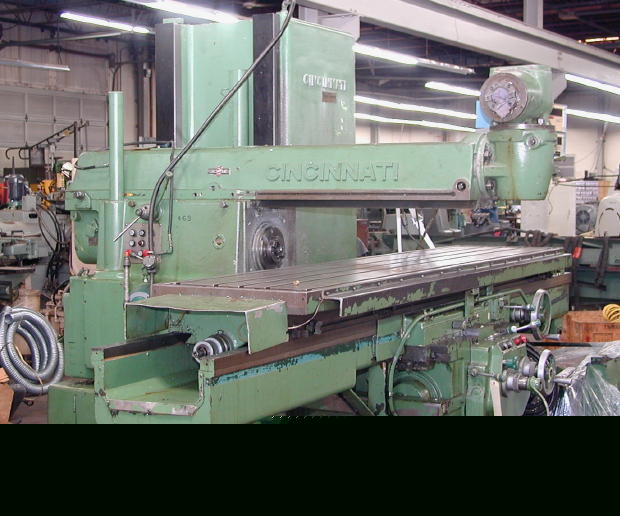

25" x 116" 25 HP Cincinnati Horizontal Milling Machine
Cincinnati Bed Type Horizontal Mill
with Dependent Overarm Attachment
Model No. 725-25 VerciPower
Serial No. 9J72H5R-1 New 1965
This horizontal mill is equipped
with the dependent overhead
universal vertical milling head
Longitudinal Table Travel: 72"
Max. Distance Horiz. Spindle Center to Table Top: 36"
Max. Distance Vert. Spindle Nose to Table Top: 40"
Spindle Speeds: 14 - 1400 RPM
Table Feed Rates: 3/8 - 90 IPM
Rapid Traverse Rate: 150 IPM
Horizontal & Vertical Spindle Nose Tapers: #50
Machine Weight, Approx.: 25,000 Lbs.
Power Shifting of Speeds & Feeds
25 HP Main Motor Drive 230/460/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
