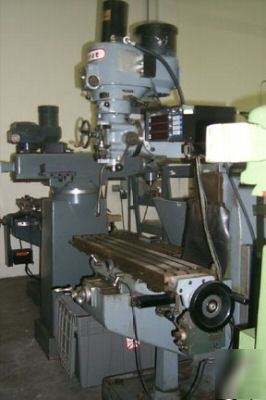

First Mill Knee Mill 90's 3 HP 9 x 49" Table D-Ann 2 Axis DRO Align X Axis Power Feed Power Draw Bar
Category: Milling Machines Sub Category: Knee & Column Type
Stock No. 2764 Age: 90's Serial # Location: Fullerton, CA
Table Travel (with power feed) 36" (32")
Quill Travel - manual & power feed 5"
Quill feeds - with trip release 0.0015", 0.003", 0.006"
Lead screw pitch (X & Y) .200" per rev.
Adjustable scale ring resolution 0.001"
Ways - hardened & ground Dovetail
Head tilt (left to right) 90 degrees
Head tilt (front to back) 45 degrees
Spindle Motor 3HP, 3phase 208-240 vac
Spindle Runout 0.0002" maximum
Variable Speed Drive 60-500 RPM (low-range)

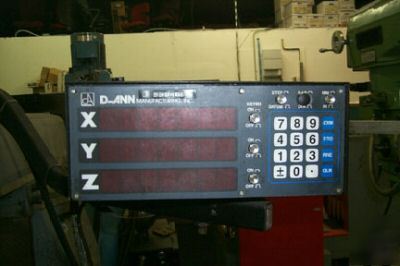

3 HP, Vari Speed 60-4500 RPM, 9 x 49" Table R 8 Spindle taper, Equipped with D-Ann 2 Axis DRO, Align X Axis Power Feed, Power draw bar
