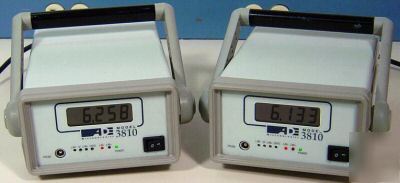

ADE Technologies 3810 Capacitive Gage - Master & Slave System
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from ADE and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
They both power up and seem to work. We have no way to test them after that however.
List Price for each Unit was: $2,995.00 NEW
The Master Unit's Serial Number Tag Reads:
Total Measurement Range: 0 - 20.0 Mils
The Slave Unit's Serial Number Tag Reads:
* Nanometer resolution for ultra-precise measurements
* Exceptional temperature stability for a wide variety of environmental measurement applications
* Wide variety of precision capacitive sensors for measuring even the most difficult size and shape target
* Standard analog outputs for easy connection to A/D boards
* Large standoff distances allow safe gaging of delicate parts
* Superior price/performance
* Patented PhaseLock probe driver circuitry for improved accuracy on ungrounded targets and applications such as thickness
* Selectable filters for maximum resolution: 10Hz, 100Hz, 1 kHz, 5 kHz
* Probes are interchangeable with straightforward recalibration
* Laser calibration (unit may not have this option)
* High precision individual unit calibration at factory using ADE developed laser interferometry system. Calibration traceable to NIST. Performance graph included.
The 3810 is a single channel instrument that provides a digital display of probe displacement on the front panel LCD display. The 3810 provides analog output via a BNC jack on the rear panel easy connection to oscilloscopes, spectrum analyzers or computer based A/D boards. The 3810, along with the 2800 series family of standard and custom probes, uses an advanced capacitive gaging technology to provide exceptional resolution, large operating ranges and large standoff distances. The large, easy-to-read, front panel display makes the 3810 an ideal production tool for operations requiring visual verification of measurements.
* Non-contact, non-destructive measurements
* Precision dimensional gaging
* Real-time in-process measurements
* In-process sheet thickness
* Servo-loop positioning systems
Measurement Range: ± 10 microns to ± 1000microns full scale, depending on probe selection
Measurement Resolution: Typically better than 5 nanometers rms. Actual resolution depends on probe selection, bandwidth and operating range. Resolution improves with larger sensor area, reduced bandwidth and smaller range.
Standard: Typically better than 0.05% over full scale range, depending on probe model and operating range.
Optional: Laser Calibration - Typically better than 0.025% over full scale range, depending on probe model and operating range. (unit may not have this option)
Stability: Typically better than 200 ppm per ° C over temperature range of 15° C to 35° C.
Bandwidth: Preset at 1 kHz. Other selections from 10 kHz to 5 kHz.
Note 1: Measurement resolution using Model 2804 2mm active area with operating range ±50 microns, standoff 100 microns, 1kHz bandwidth.
Inputs / Outputs Specifications:
Probe Input: Single, accepts Series 2800 probe family.
Analog Output: Single, preset ± 10 volts for full scale range.
Drive Synchronization: For multi-unit applications. Uses patented PhaseLock circuitry.
Limits: User adjustable digital outputs for detecting overrange and measurement limits.
Adjustments / Indicators Specifications:
Front Panel Adjustments: Calibration adjustments for scale factor. Offset adjustments for zero setting. Limit settings.
Front Panel Indicators: Power, + Limit, -Limit
Size (L x W x H): 9 3/8" x 5 1/16" x 1 3/16" (24 cm x 13 cm x 3 cm)
Weight: 1 kg (2.2 lbs) - does not include packaging
Operating Environment Specifications:
Temperature: 5° C to 50° C (41° F to 122° F)
Humidity: 0 to 95% RH, non-condensing
Power Requirements: 105- 125 VAC, 47- 420 Hz
For More Pictures Please Click the Following Links:
* Picture 2 - Front of the Slave Unit - Up-Close
* Picture 3 - Front of the Master Unit - Up-Close
* Picture 4 - Back of the Slave Unit - Up-Close
* Picture 5 - Back of the Master Unit - Up-Close
