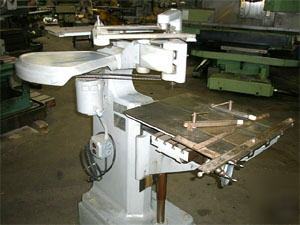

GORTON, NO. P1-2 PANTOGRAPH ENGRAVER
THIS 2-DIMENSIONAL MODEL IS FOR GENERAL ENGRAVING,
DIE MOLD OR STAMP CUTTING & PROFILING ON FLAT OR
CURVED SURFACES. HIGHLY ACCURATE, CAN ENGRAVE
CHARACTERS .002" HIGH. RIGID ENOUGH TO OPERATE 5/16"
DIAMETER CUTTERS AT CAPACITY IN STEEL. PANTOGRAPH
TRANSMITS MOVEMENT FROM TRACER TO WORK AT REDUCTIONS
SET ON PANTOGRAPH BARS. CUTTER COVERS AREAS
6" X 14-3/4" RATIOS 1:1 TO INFINITELY ARE POSSIBLE.
COPY TYPE, TEMPLATE OF MASTERS MOUNTED ON COPYHOLDER
AND ARE TRACED BY MANUALLY OPERATED TRACING STYLUS.
COPY OR MASTERS ALWAYS FLAT; CURVATURE IS OBTAINED
BY USING FORMING GUIDES OR GORTON ROLL ATTACHMENT
TABLE WORKING SURFACE 8" X 18"
SPINDLE NOSE TO TABLE TOP 0 - 11-5/8"
SPINDLE SPEED RANGE 4,700 - 18,000 RPM
SPINDLE MOTOR 1/4 HP 110V/1PH/60HZ
AREA, RECTANGULAR 6-1/4" X 10-1/2"
CLEANED, CHECKED AND IN GOOD CONDITION!!!
