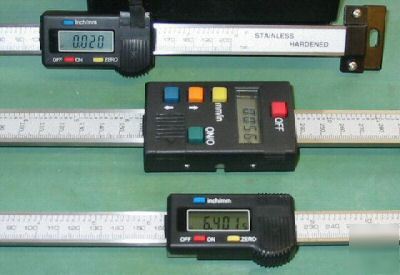

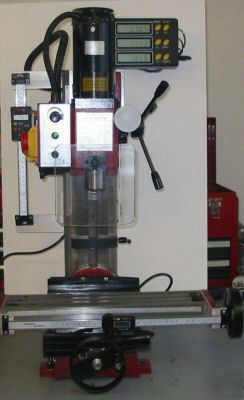

Speed and Precision! This is the way to get quick accurate Digital Positioning for your Mini-Mill! A complete 3-axis digital display kit which includes everything needed; 3-axis display and scales, installation kit and instructions. Our complete Mini-Mill DRO retrofit Kit includes a 1 year warrantee!
End your fight for accuracy! Our Digital Positioning system eliminates dial counting, backlash compensation and sight positioning errors. Zero at any point, switch between Standard and Metric measurement and system also supports rotary table operation. An easy to see Display, system also eliminates the need for most time consuming hand layout procedures. We have Hundreds of Satisfied users Worldwide.
Exclusive Feature: Multi-Machine Display-
A major cost factor of all DRO systems is a Display. You can now save 30 to 50% in DRO system costs for a second machine. System has quick connect cables along with magnetic attachment to enable quick easy movement of 3-Axis display to a lathe or other second machine. We supply installation kits for other machine tools.
New drop-in installation kit installs in 1 to 3 hours. All brackets and hardware are included. Installation requires only common hand tools a hand drill, caliper and indicator with magnetic stand. System includes step by step installation directions and toll free telephone support is available.
Each kit comes with machining calculation software that plots X-Y DRO positions for bolt circles, Line Bore and many other machining calculations. Easy to use Windows PC version includes a full 30 day trial purchase cost $29.95.

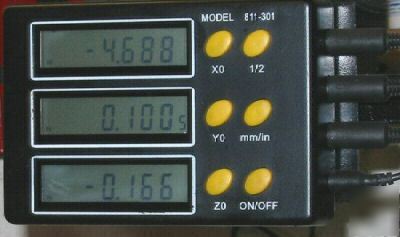

* 3-axis display unit back lighted

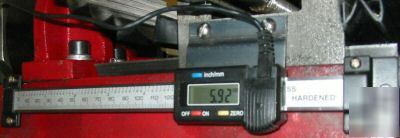

* X-axis horizontal Digital scale 12â€

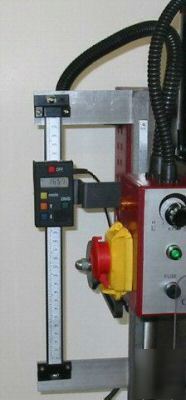

* Z-axis Vertical Digital scale 8â€
* Y-axis horizontal Digital scale 6â€
* Inch/Millimeter conversion button.
* Preset Function display Z-axis scale
* Resolution: 0.01mm/0.0005in
* Minimal Accuracy +/- 0.000.5
