*** LS-Smart Tool Checker – Description ***
* An online PDF brochure on this item can be found on Rollomatic's Website, the address is, http://www.rollomatic.ch/brochures.php?mach=LSS&lang=EN , if you are interested.

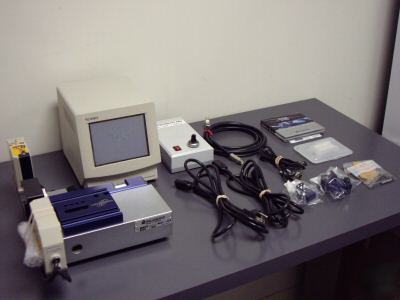

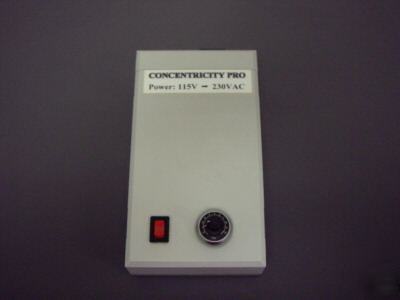

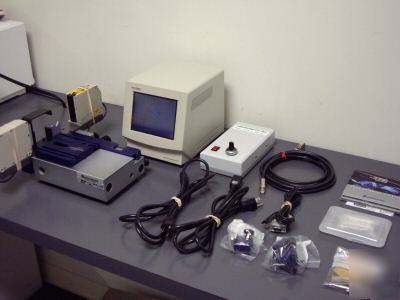

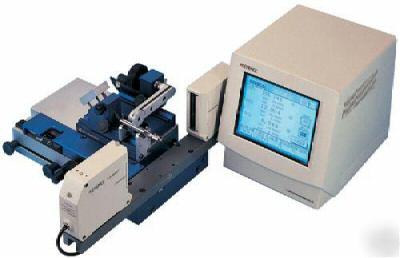

The LS-Smart system combines a non-contact laser measurement system with a motorized Rollomatic Concentricity Pro gauge. It provides the most reliable measurement possible of both diameter and concentricity in one step. The system is capable of measuring the diameter, taper and run-out on cylindrical components, and can ideally be used on cutting tools with an even or uneven number of flutes, as well as on rotary components with or without interrupted cuts.
The LS-Smart software (PC-based) tailored for this system assures instant and accurate recording. The measured results can be displayed, printed or exported in spreadsheet format
In summary, the system features the following:
For standard component sizes Ø 1.0-25.4 mm and length 28-100 mm

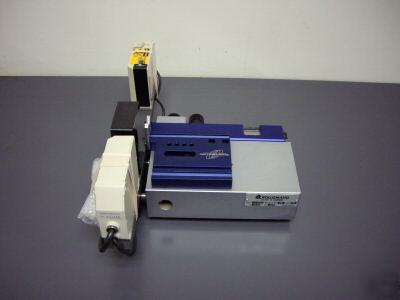

(1.1"-3.9") Rotary Drive: Non-slip motorized driving roller (patent pending) allows parts such as cutting tools to be rotated at extreme slow speeds for more accurate measurement.
To ensure that there is no axial movement during rotation, the special
end-stop (patent pending) has a ball shape allowing only one point of
contact on the centre of the component.
Digital display, double-micrometer for rough and fine adjustment

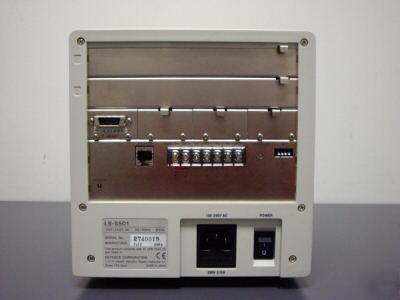

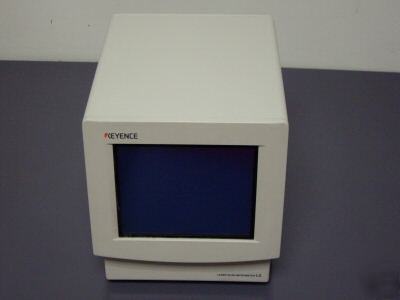

Laser scanner : KEYENCE Series LS-5000 with resolution 0.05 microns
PC based (PC not included) with graphic display with read-out resolution 1 micron.
PAID $22,000 NEW AND NEVER USED IT. ITS BEEN SITTING FOR A YEAR IN ORIGINAL BOX. IF YOU HAVE ANY QUESTIONS PLEASE CONTACT , THANK YOU.
