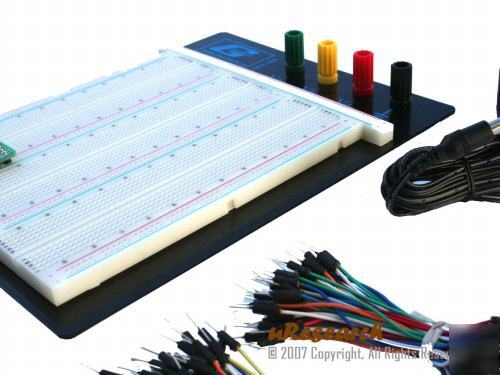

It is an invaluable tool for the most demanding prototyping and design applications, whether in the R&D or University lab. They are the reusable solderless device used to build a (generally temporary) prototype of an electronic circuit and for experimenting with circuit designs. Because no soldering is required, modifying or revising the circuits can be done quite easily, without the need for any tools and without the risk of overheating or damaging the board. The breadboard consists of a set of formed metal sockets inserted into a durable plastic housing, holding them firmly in place. The breadboard pattern is a useful combination of isolated tie points, which serve as discrete points in the circuit, as well as a continuous bus structure, which serves to distribute power and provide common ground points.
The breadboard allows the design and change circuits quickly and cleanly. Breadboards accommodate all sizes of DIPs and discrete components with lead diameters up to 0.032â€. Interconnect with solid hook-up wires (#22 AWG recommended). Wires and components can be used and re-used many times without damage to board or components. 2,860 tie points, 3 terminal strips, 5 buss strips, 4 blinding posts mounted on an aluminum black plate 6 7/8â€W x 9â€L x 3/8â€H.
· Standard 0.1†(2.54mm) hole spacing
Highest quality flexible cable jumper wires
They are the highest quality flexible cable jumper wires. This type of breadboard cable wires are most preferred. Wires are flexible, durable, reusable, easy to trace, easy to connect and disconnect. Quality projects deserve use of this quality breadboard COMBO.

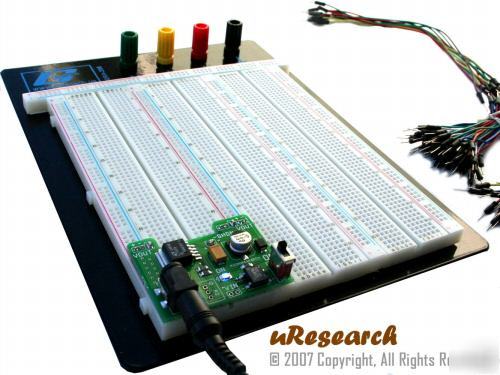

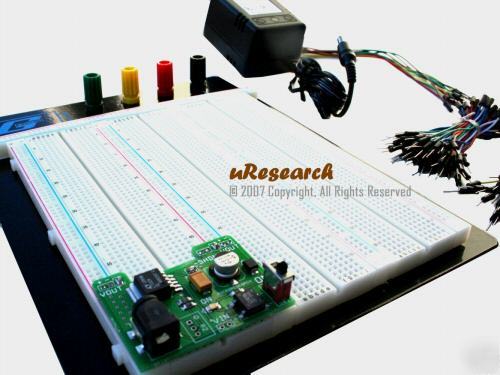

+5V Breadboard Regulator Board
This BRD-SUP board is a voltage regulator for the solderless breadboard. It is design so that user can easily use inexpensive wall adapter to power up electronic circuitry on the breadboard. It can provide a constant output voltage for up to 700mA.
This board features innovations that set it apart from other regulator boards. Innovations feature like shut down control line, bright blue power ON LED and ON/OFF switch. This is a quick and easy way to connect. You can plug the BRD-SUP board directly on to the breadboard. The board is small and compact in size 2.00 x 1.50 inches.
· 16uA Quiescent Current in Shutdown
· Operate from a single 5V supply
· Automatic Convert Input Voltage Polarity
· High quality double sided PCB
For more information please see: BRD-SUP User Manual

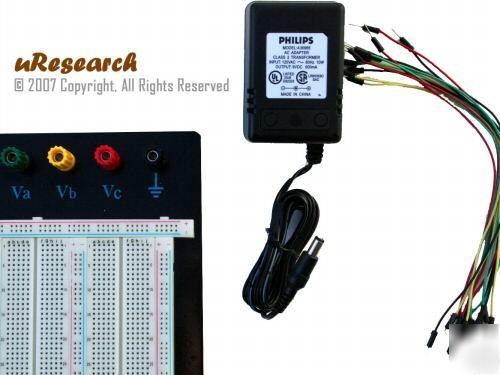

9V 600mA 2.1mm Positive Center
It is a Philips AC-DC Adapter A30965. This AC adapter can use directly with BRD-SUP board or may be compatible with many products. It is also good for all electronic experiment!
With this kit, you are ready to work on any 5V microcontroller or logic circuit!

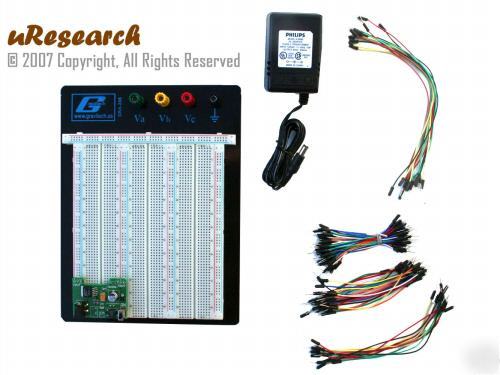

Items included for this action:
· +5V Breadboard Regulator (BRD-SUP)
· 9V 600mA Philips AC-DC Adaptor A30965
You get all of them! Hurry, supplies are limited.
