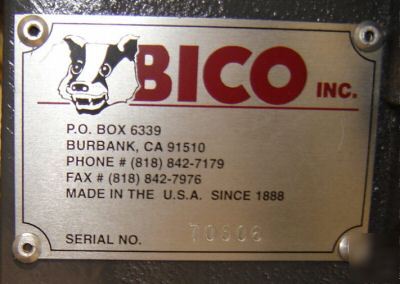

MANUFACTURED BY BICO INC, P.O. BOX 6339, BURGANK, CA 91510, (***) 842-7179, FAX (***) 842-7976. MADE IN U.S.A. S/N-70506.

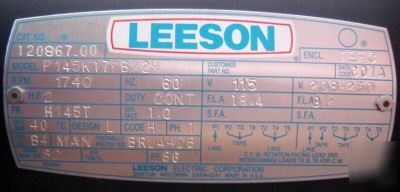

LEESON MODEL P145K17FB22H, CATALOG NO. 120867.00, 2 HP, 1740 RPM, 60 Hz, 115/208-230 VOLT, MOTOR. ENCLOSURE TYPE TEFC, CONTINUOUS DUTY, F.L.A 18.4 AT 115V, F.L.A. 9.2 AT 208-230V, FR H145T, SERVICE FACTOR 1.0.
MATERIAL INLET DIAMETER 1.5", PULVERIZER WHEELS DIAMETER 8", CATCH TRAY 4"W X 11"L X 1.25"D. 4 BELT SHEAVES WITH 4 NEW V BELTS INSTALLED. COMES COMPLETE WITH 208-230V PLUG AND ON/OFF SWITCH.

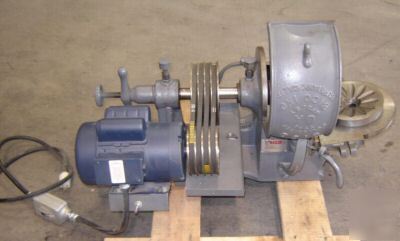

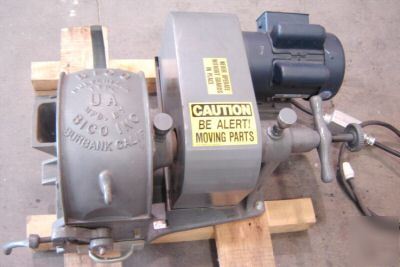

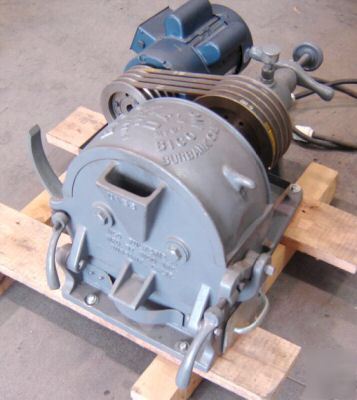

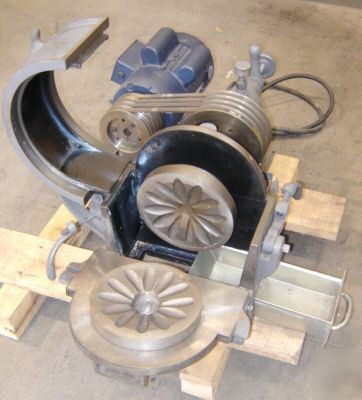

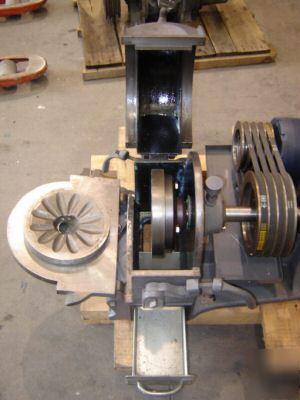

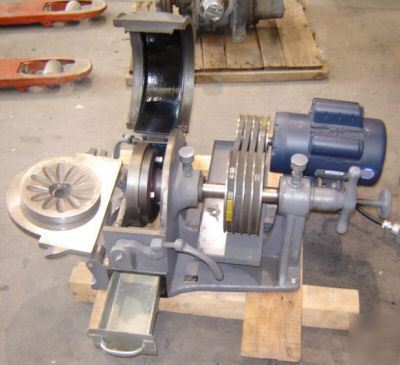

THE DISK PULVERIZER WILL ACCEPT A 1/4" DRY FRIABLE MATERIAL AND REDUCE IT TO A FINE POWDER OF 150-200 MESH AT APPROXIMATELY 1 LB/MINUTE (BASED ON QUARTZ). THE 8" GRINDING PLATES CAN BE ADJUSTED AND LOCKED INTO POSITION TO OBTAIN THE REQUIRED PARTICLE SIZE. PLATES ARE OFFERED IN A VARIETY OF MATERIALS AND HARDNESS TO SUIT THE USERS GRINDING NEEDS AND BUDGET REQUIREMENTS. THE ENTIRE GRINDING CHAMBER IS ACCESSIBLE FOR EASY CLEANING AND GREATER SAMPLE RECOVERY.
