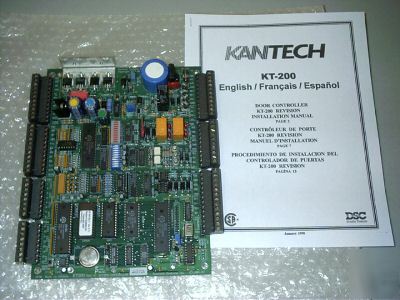

- 1 KANTECH KT-200 board door controller (used) in perfect working condition.
Installed on board: EPROM EP-ENTRA3 V2.13
Will be working with any version of Kantech software EntraPass V3.10- 3.18 (Special Edition, Corporate Edition or Global Edition)
-1 Spare fuses kit - not on picture
-1 Installation/ Instruction manual
The KT-200 Door Controller is the cornerstone of your access control system. The KT-200 is capable of controlling two separate doors or a single door (with readers on each side of the door). To form the system, each KT-200 is linked to other KT-200s using an "RS-485" communication bus. A smaller initial system can grow to secure hundreds of doors just by adding more controllers and the appropriate software.
* Built-in power supply for door locks (24 VDC)
* RS-485 / RS-232 communication ports
* Optional REB-8 relay modules (2 per KT-200)
* Lithium batteries for memory backup
* ABA - Wiegand - BCD data input Door Controller
Each KT-200 can monitor the state of 16 input points such as magnetic
contacts, motion detectors, temperature sensors or any other device with
dry contacts. To ensure line integrity, all zones are terminated with end-ofline
Two control relays provided on each KT-200 can be used to activate
alarms or other devices such as lighting control, ventilation, and air
conditioning. These relays can be activated according to schedules, events
reported by the system, or a combination of different logical conditions.
The system configuration is determined by a choice of EPROMs available to
meet different systems and capacity requirements. As the system is
expanded, the KT-200 circuit board remains the same. This feature provides
flexibility and savings in the future.
All KT-200 controllers keep the access control database in memory. This means
that the KT-200 keeps all information regarding cards, schedules, access codes
and can verify access requests even when it is disconnected from the network
(autonomy varies for EntraPass Global Edition). The memory is also protected by
a lithium battery maintaining data even if the usual battery backup is
disconnected. Date and time are also maintained by this on-board battery.
2 gel type batteries 12V, 7Ah provide operation for 8 hours
39.4cmH x 5cm W x 9.8cm D (15.5 in x 13.63 in x 3.88 in) EMT 1,25cm (1/2 in) and 1,9cm (3/4 in)
knockouts. Is supplied with a lock and two keys.
2ºC to 40ºC (35ºF to 110ºF) at 90º non-condensing humidity
Z80-6Mhz, with “watchdog†circuit
Proximity, Wiegand, magnetic, bar code, keypads and others
150 meters (500 feet) from KT-200
At each reader equipped with a keypad
16 monitor points, NO/NC, supervised by end-of-line resistors (included)
r Supplied by the KT-200: 27 volts DC 250mA maximum
27 volts DC, 50mA open collector
2 relays, 30 VDC/24VAC, 2A max. Possible expansion to 16 relays
The REB-8 relay expansion board
provides an additional 8 general
purpose control relays to the KT-200
door controller. Two REB-8 boards
