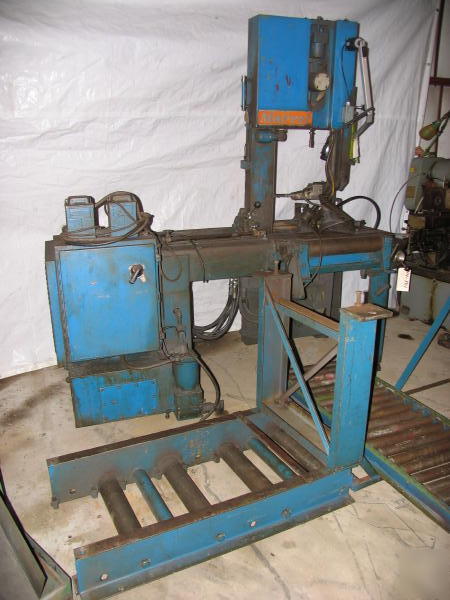

Marvel Universal Tilt-Frame Vertical Band Saw
Marvel Series Tilt-Frame Vertical Band Saw
Serial No. D-1381 New 1970
Maximum Cutting Capacity: 18" x 20"
Cutting Capacity w/Blade at 45 deg. angle: 18" x 12-1/2"
Maximum Blade Width: 1.25"
Maximum Blade Length: 14'6"
Working Surface of Table: 30" x 33"
Maximum Opening of Vise: 21-1/2"
Blade Speeds, Variable: 60 - 340 FPM
Blade Feeds, Variable: 0 - 200 lbs.
Machine Weight, approx.: 5,020 lbs.
Power Adjustment of Upper Guide Head
5 HP Hydraulic Pump Motor 230/460/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
