-Goodyear hydraulic hose and fitting: perma crimp pc 125

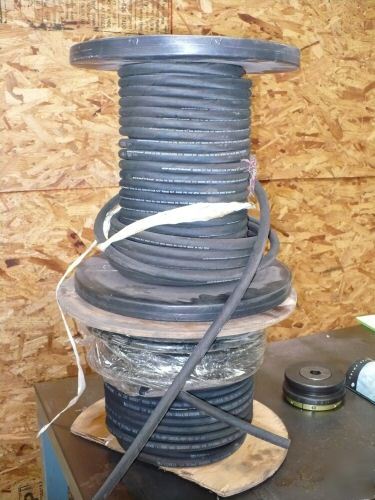

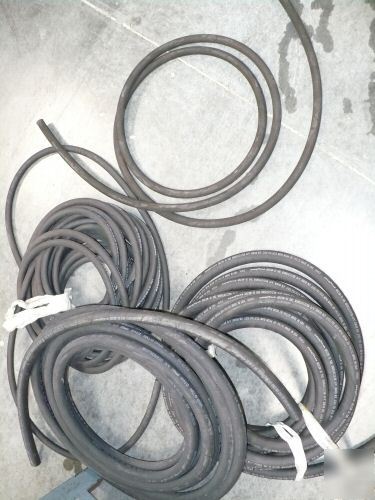

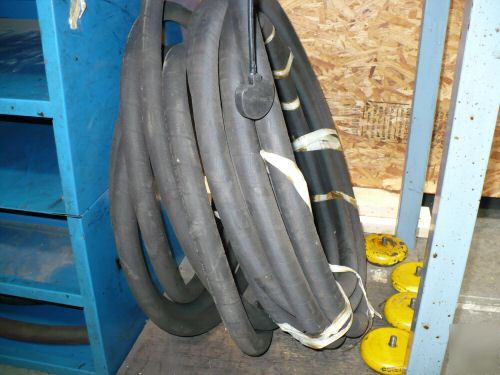

1/4in. hydraulic hose approx. 50ft. 5800 psi
1/4in. hydraulic hose approx. 50ft. 5000 psi
3/4in. hydraulic hose approx. 30ft. 3120 psi
3/8in. hydraulic hose approx. 50ft. 4800 psi
1in. hydraulic hose approx. 30ft. 3000 psi

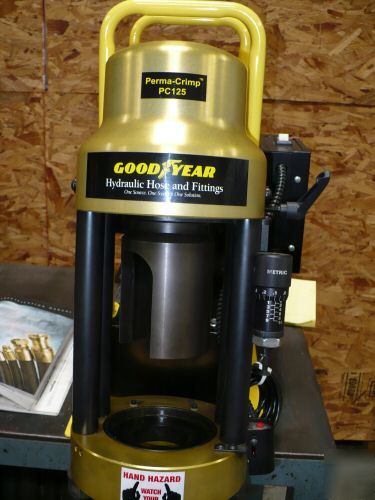

The PC125 portable crimper with its open design, removable pusher and easy to use, spring loaded die set, is designed for higher production volume and repetitive use. Crimp diameter is set and controlled with an easy to read micrometer. The PC125 is packaged for shop service and includes the crimper and 1 HP, 110V electric pump on a common base, compression ring, pressure plate, magnetized die ring pusher, stop/start remote pendant switch, metric micrometer, adjustable coupling stop and adjustable retraction stop.
* Easy to read, fully adjustable metric micrometer allows precise setting of crimp diameters to an accuracy of +/-.1mm
* Open design with vertical feed for good operator visibility.
* Removable pusher and spring loaded die set for easy loading
* Magnetized pusher to attach compression ring for repetitive use
* Automatic shut off for precise crimps
* Adjustable Retraction Stop limits ram retractions for quick repetitive crimps
* Adjustable coupling stop for accurate, repetitive positioning of the assembly inside the dies
* Two piece, “slide in†die design for easy installation.
* Common base for bench mounting
* Color coded die sets to speed die selection and set-up
* Pneumatic activation (no electric wires) of remote pendant switch
* 1/4" through 1 1/4" ID, 2 wire braid hose and 1" ID 4-spiral hose with all coupling end styles including most bent tubes.
* 1 HP, 110V/208-230 AC, single phase 50-60 Hz, Electric Pump (PC125/150-E1PUMP) with pneumatic stop/start pendant switch
Mounting: Crimper and pump installed on plate
Dimensions: 20" deep x 11" wide x 19" tall
