50 taper 1-3/8" tool holder tooling shell mill adapter


Poster: 706644446@iowa-industrial.com

50 taper 1-3/8" tool holder tooling shell mill adapter

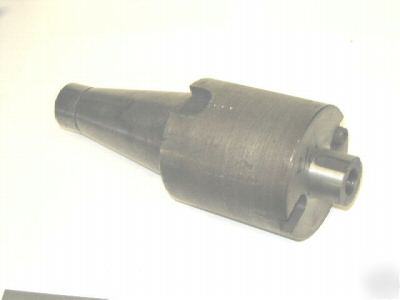

Here we have a Good used 1.375" Shell mill tool holder, looks like it can also be used as a horizontal mill arbor as it does have a keway drive slot. That slot measures .375" The length of the arbor is 15/16"
If you use it as a shell mill driver for indexable face mills etc, the drive slots measure 5/8" and the one slot has a cap screw in it, the other side it is missing.
The threads inside appear to be about 3/4" right hand.
No bolt is with it for that hole.
US Made but I do not see a name.
If you need a specific size of anything just ask.
If in Michigan add 6% sales tax. Thanks!
