Vip dual output ring generator RP60-2A


Poster: 1685673054@iowa-industrial.com

Vip dual output ring generator RP60-2A

VIP DUAL OUTPUT RING GENERATOR RP60-2A
-48 VDC isolated from chassis ground.
AC output is referenced to the -48VDC output.
93VAC @ 0.12A. Consult factory for greater loading.
20Hz +/- 10% is standard. 30 Hz and other frequencies available as well as 5% tolerance.
Less than 10% for the full input voltage range and no load to full load.
Simulated sine wave with less than 20% distortion.
Both outputs have current limiting with full protection and auto recovery.

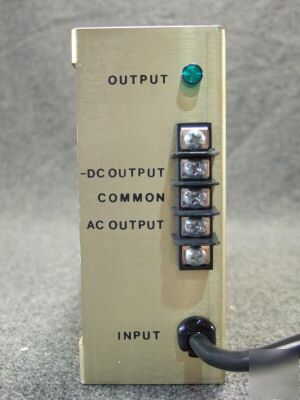

A PC board mounted green LED indicates that both outputs are operating. Optional remote indicator.
Ambient temperature range is 0 to 50 degrees C for full load operation.
Open frame construction on aluminum chassis.
FCC 20780, Class A EN55022, Class A
UL 1950, CSA C22.2-950, EN60950
Model RP60-2A has received UL recognition, File #E140410, CSA certification, File #LR85037-3, EN60950 Report *D210754901.
THIS DEVICE HAS BEEN TESTED AND IS WORKING PROPERLY
HAS A FEW VERY MINOR SURFACE SCRATCHES BUT OTHERWISE IN VERY NICE CONDITION
MANUAL, CABLES, ETC. NOT INCLUDED
