Linear Measuring Systems Company offers the following:
**NEW** Jenix scale to replace your Sargon scale.
These are not direct replacement scales.
You will need to drill new mounting holes and change the resolution of the display.
We supply installation instruction and display change instructions.
Sargon went out of business completely in August of 2005 so new parts are not available. This is why we are offering theses new scales to retrofit to your existing dro system.
I can send you a invoice for the scale size you pick.
Above price includes the Sargon connector adapter
If you have a Acu-rite or Anilam scale with a round 6 pin connector add $25.00 to the above price.
Add $25.00 per axis for Acu-rite Millmate connector adapters.
Other sizes available, please call (***)-376-4373 for more information.
※ Additional extension cables are optional.
(1) Equivalent to Ip53, (2)Improvement of the design grade
By the relative moving of MAIN scale and INDEX scale, light signal is changed to Electric signal.
After that, it is made to high divisional signals via the Electric circuit
The JSN model scales are 5.90" longer than the stated travel.
JSN model front to back measurement is 0.078"
JSN model top to bottom measurement is 1.25"
The JSS model scales are 7.87" longer than the stated travel
JSS model front to back measurement is 0.086"
JSS model top to bottom is 1.33"
Scale resolution is 5um/.0002".
Instructions are included to change the resolution of your display from 10um/.0005" to 5um/.0002"

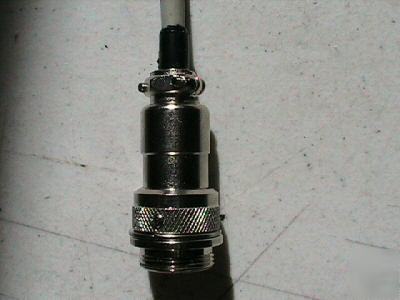

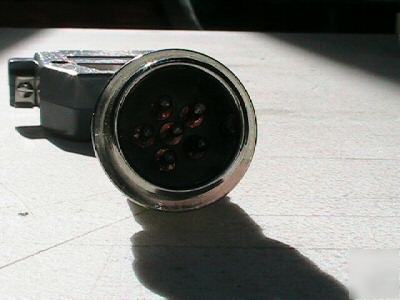

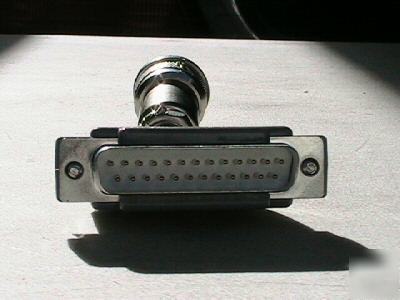

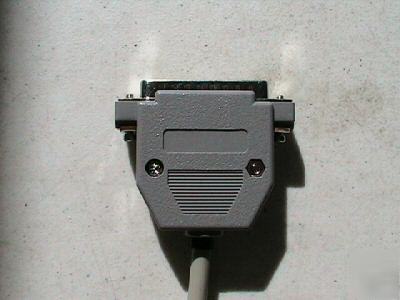

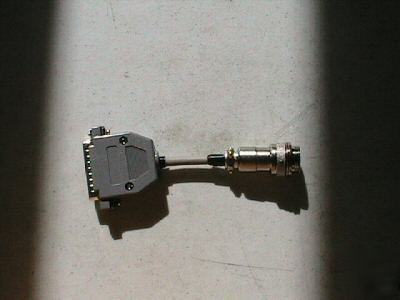

Sargon Adapter or Acu-rite/Anilam round connector adapter
1) The adapters are not available to purchase separately.
You must purchase a scale to receive a adapter.
The following displays are not compatible with the scales I am selling:
We do offer a trade in discount on any new system purchased when you trade in any of the systems mentioned below:
Heidenhain - They make to many different scales with to many different signals and connectors.
RSF - They make to may different scales with to many different signals and connectors.
Tri-onics - They are out of the dro business and I don't have the technical data to make the adapters.
Futaba -They use a 15 volt system which 10 volts higher than the Jenix.
Teledyne Gurley - Gurley Precision - I don't have the technical data to make the adapters.
Newall - They use a different scale signal.
Sony - They use a different scale signal.
Sokki - They use a different scale signal and no longer made
Textron - Bridgeport dro system made by Textron - They use a different scale signal and no longer made.
2) Papal - Send me the e-mail address that you use on Papal and I will send you a
4) Company Checks (require 5 - 7 days to clear).
All California residents will pay 7.75% tax on your purchase unless you have a resale number.
No trades for other product or services
Display and scales comes with a 5 year Mfg. warranty.
Property is sold "New". Seller "Warranties property and condition is as described".
The scales are imported, sold and serviced by our company, Linear Measuring Systems Company in California.
For further information about Linear Measuring Systems, you can see us at
