WAVETEK LANTEK PRO XL CAT5 Certifier with 850nm Fiber Light Source and Meter.
This Unit Is Currently In Transit From CALIBRATION!
Test and Certify Cat5 and 850nm Fiber Optic Cabling Installations!
This Package Is Upgradeable to Test 1300nm and 1550nm With Optional 1300nm and 1550nm Light Sources (not included in this sale).
Batteries Hold a Good Charge on this Wavetek Pro XL Test Set.
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
LANTEK PRO XL ... Certify with Confidence.

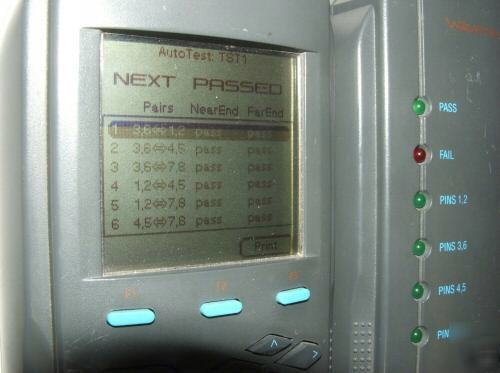

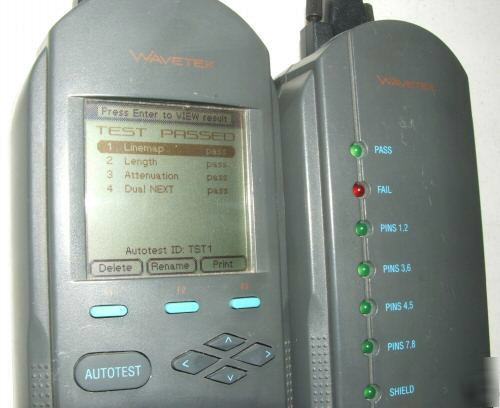

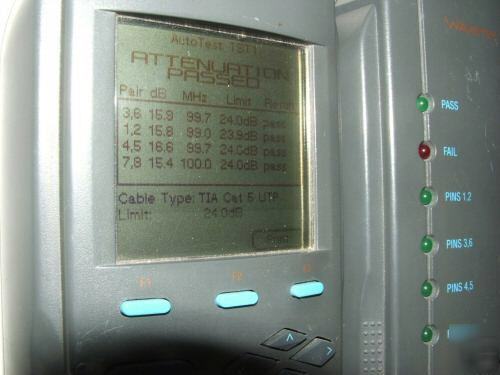

Confidence and speed! The two qualities you need most to certify and troubleshoot your LAN installation. Confidence to know your LAN meets TIA and ISO standards. And speed to do your job efficiently and economically. In less than 30 seconds, the Autotest completes line map, DC loop resistance, length, capacitance, Dual Next, attenuation and Attenuation-to-Crosstalk Ratios (ACR) measurements. The LANTEK PRO gives you tremendous speed advantage, without compromising performance. Our advanced
design guarantees TSB-67 Level II accuracy for basic and channel links
The LANTEK PRO XL stores up to 500 Autotests. You can easily print each test or download all the tests into a PC for later use. You can even sort test results! Users can select TIA or ISO Autotest suites to automatically perform all the tests required by the respective standard. Cable types and test suites can be customized by the user to adapt to specific needs.
The LANTEK PRO XL also comes with built-in troubleshooting using Cable Expert.
If Autotest fails, a simple press of the button enables Cable Expert to highlight the suspected problem and display troubleshooting advice describing both the problem and the possible causes.
Test 850nm Fiber Optic Cabling Installations!

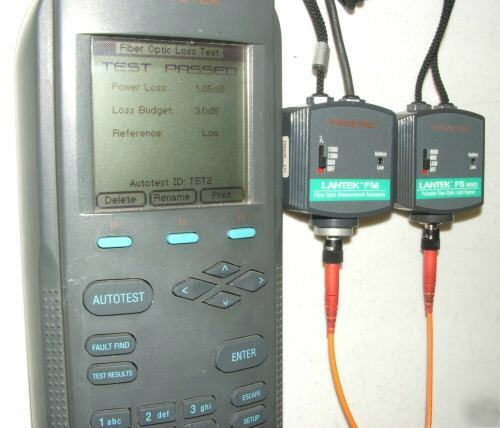

Fiber Optic Cable power loss measurements capability for the LANTEK PRO XL! With the FIBERKIT, the LANTEK PRO XL directly displays optical power loss through fiber cable, splices and connectors. With this powerful but simple fiber conversion, you can verify proper connection of fiber cabling with the same LANTEK PRO XL you use for copper cable. LANTEK PRO XL has some of the same Testing features that the Fluke DSP Test Sets has.
Save big dollars with the convenience of a Copper and Fiber Tester.
Due to this unit being used, we do not guarentee battery life on the replaceable Battery Packs.

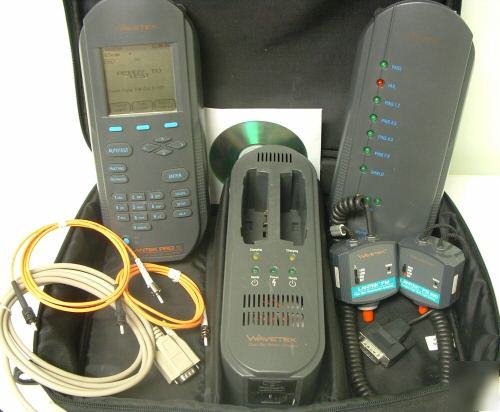

* 1- LANTEK PRO XL MAIN UNIT

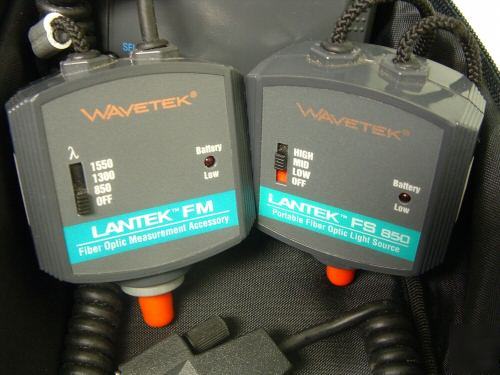

* 1- LANTEK FM Fiber Optic Meter ( 850nm 1300nm & 1550nm )
* 1- LANTEK FS 850 Fiber Optic 850nm Light Source
* 2- Multimode Fiber Patch Cables
* 2- Channel Test Adapters (RJ45)
* 2- Link Test Adapters (RJ45)
* 1- Lantek Calibration Adapter

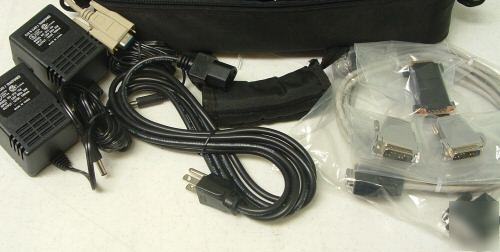

* 2- Lantek PRO XL Battery Packs
* 1- Lantek PRO XL Cable Management Software (Download and Print Passed Tests)
* 1- Lantek PRO XL to PC Down Load Cable
