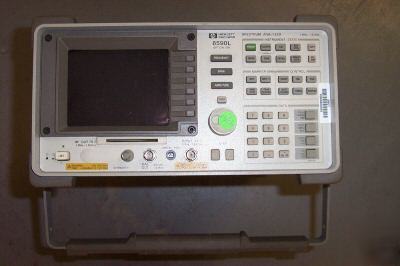

Hp agilent 8590L spectrum analyzer


Poster: 223078005@iowa-industrial.com

Hp agilent 8590L spectrum analyzer

SPECTRUM ANALYZER; HAS OPTIONS 001,003,043; HAS A 30 DAY WARRANTY;
COMES WITH MANUAL SOFT CASE AND STANDARD POWER CORD;EXCELLENT
* Frequency counter: Eliminate the need for a separate frequency counter with the built-in frequency counter-with ±2.1 kHz accuracy at 1 GHz (±7.6 kHz from 0 to 50 °C)
* Multiple resolution bandwidth filters: Optimize the tradeoffs of speed, sensitivity and the separation of closely spaced signals with your choice of 10 resolution bandwidth filters beginning at 1 kHz
* 145 dB amplitude measurement range: Measure signals directly with -115 dBm to +30 dBm amplitude measurement range
* One-button measurement routines: Save time, setup, and training with one button measurement routines such as Adjacent Channel Power, signal bandwidth and Third Order Intercept (TOI)
* Phase noise of 105 dBc/Hz at 30 kHz offset: Uncover small signals close to carriers with an internal phase noise that will not get in your way
* Dual interfaces: Operate remotely and print directly with the optional dual interfaces that combine either an GP-IB or RS-232 port with a parallel (Centronics) port
* Built-in tracking generator: Measure the scalar characteristics of your components with the optional built-in tracking generator and the Agilent 85714A scalar measurements personality
* Frequency counter: Eliminate the need for a separate frequency counter with the built-in frequency counter-with ±2.1 kHz accuracy at 1 GHz (±7.6 kHz from 0 to 50 °C)
* Multiple resolution bandwidth filters: Optimize the tradeoffs of speed, sensitivity and the separation of closely spaced signals with your choice of 10 resolution bandwidth filters beginning at 1 kHz
* 145 dB amplitude measurement range: Measure signals directly with -115 dBm to +30 dBm amplitude measurement range
* One-button measurement routines: Save time, setup, and training with one button measurement routines such as Adjacent Channel Power, signal bandwidth and Third Order Intercept (TOI)
* Phase noise of 105 dBc/Hz at 30 kHz offset: Uncover small signals close to carriers with an internal phase noise that will not get in your way
* Dual interfaces: Operate remotely and print directly with the optional dual interfaces that combine either an GP-IB or RS-232 port with a parallel (Centronics) port
* Built-in tracking generator: Measure the scalar characteristics of your components with the optional built-in tracking generator and the Agilent 85714A scalar measurements personality





Hp agilent 8590L spectrum analyzer
