2048-Bit CMOS STATIC RAM WITH I/O PORTS AND TIMER
The MSM81C55-5 has a 2k-bit static RAM (256 bytes) with parallel I/O ports and a timer. It uses
silicon gate CMOS technology and consumes a standby current of 100 micro ampere, maximum,
while the chip is not selected. Featureing a maximum access time of 400 ns, the MSM81C55-5
can be used in an MSM80C85AH system without using wait states. The parallel I/O consists
of two 8-bit ports and one 6-bit port (both general purpose).
The MSM81C55-5 also contains a 14-bit programmable counter/timer which may be used for
sequence-wave generation or terminal count-pulsing.
• High speed and low power achieved with silicon gate CMOS technology
• Single power supply, 3 to 6 V
• 8-bit programmable I/O ports (port A and B)
• RAM data hold characteristic at 2 V
• 6-bit programmable I/O port (port C)
• 14-bit programmable binary counter/timer
• Multiplexed address/data bus
• Direct interface with MSM80C85AH

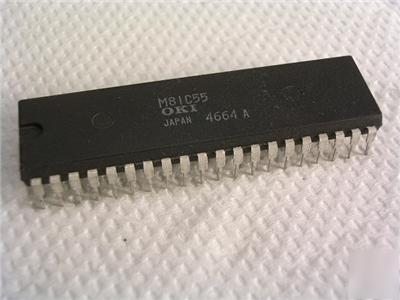

• 40-pin Plastic DIP (DIP40-P-600-2.54): (Product name: MSM81C55-5RS)
