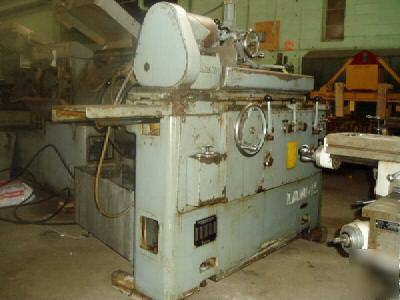

6" x 18" LANDIS PLAIN CYLINDRICAL GRINDER
New 1976, Serial No 864-62, Model 1R, Ltr R
Hydraulic Longitudinal Table Feed
Hydraulic Grinding Wheel Infeed
Bijur One Shot Lubrication System
Swing Over Table, Nominal................ 6"
Grinding Diameter, Maximum............... 6.875"
Distance Between Centers, Nominal........ 18"
Grinding Wheel Diameter, Standard........ 16"
Grinding Wheel Width, Maximum............ 3"
Grinding Wheel Width, Standard........... 1"
Grinding Wheel Hole Diameter............. 5"
Table Swivel Taper....................... 4 IPF
Table Swivel Angle....................... 20-DEGREES
Workhead Center Taper.................... #10 JARNO
Tailstock Center Taper................... #6 JARNO
(6) Workhead Spindle Speeds, Range....... 60 to 600 RPM
Table Longitudinal Feeds, Infinite....... 2 to 240 IPM
Grinding Wheelhead Spindle Motor......... 3 HP
Hydraulic Motor, Horsepower.............. 1 HP
Electrical System........................ 220-440/3/60
Floor Space Required, L x D.............. 8'10" x 4'2"
Weight, Approximately.................... 4150 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $5,950.00
All machines/equipment subject to prior sale.
