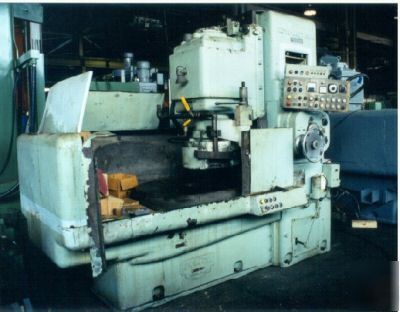

42" KOYO MATTISON NO. 24 VERTICAL SPINDLE ROTARY SURFACE GRINDER
MANUFACTURED 1971, RACO Stock Number R012759
WORK HEIGHT UNDER WHEEL - ( MAXIMUM ) - 17.7"
GRINDING WHEEL SPEED - 900 RPM
WHEELHEAD FEED RATE - .0002" TO 1.2 IPM
WHEELHEAD RAPID RATE - 5.9 IPM
TABLE SPEEDS - 8, 14, 23, 32 RPM
MAXIMUM TABLE LOAD - 1760 LBS.
MAIN DRIVE MOTOR - 75 HP 220/440/3/60
COOLANT TANK AND PUMP, SEGMENTED GRINDING WHEEL
POWER TABLE TRAVERSE, WHEEL DRESSER
MAGNETIC CHUCK WITH CHUCK CONTROL
APPROX. WEIGHT: 20000 LBS., DIMENSIONS (IN.): 138 X 100 X 100
*** IN GOOD WORKING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** PRICE INCLUDES, 30 DAY RETURN PRIVILAGE, AND FREE LOADING ***
