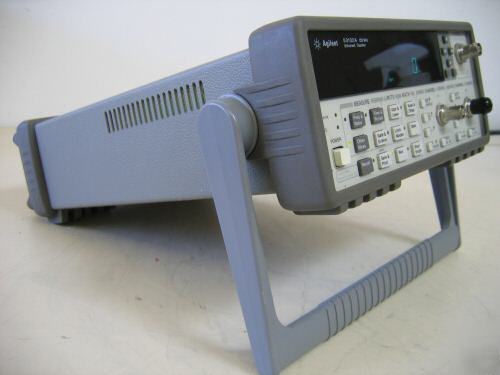

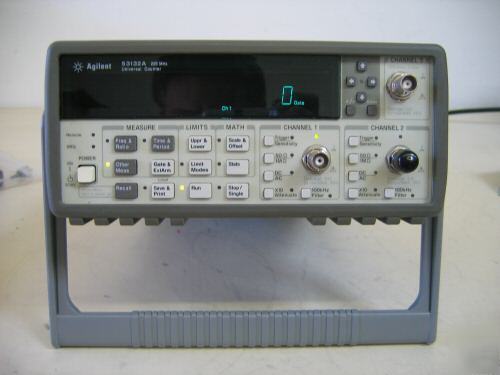

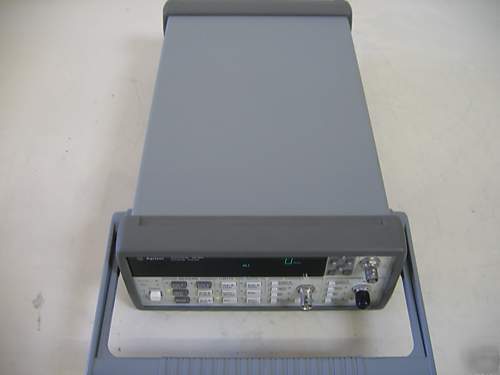

HP Agilent 53132A Universal Counter, 225 MHz, 12 Digits, w/ Options
* Description: The HP Agilent 53132A Universal Counter has frequency resolution of 12 digits per second, 150 ps time interval resolution and a complete set of test and analysis features and two 225 MHz channels. An optional third channel that measures up to 3 GHz, 5 GHz, or 12.4 GHz is also available. The Agilent HP 53132A has the capability to do the job quickly and correctly from fast signal processing to automated limit tests. Other features and specifications of the HP Agilent 53132A include:
* 225 MHz bandwidth (optional 1.5, 3, 5, or 12.4 GHz)
* 12 digit resolution with 1s gate time
* GPIB interface standard for use with Intuilink software
* Data transfer rate of up to 200 fully formatted measurements/second
* 150 ps time interval resolution
* Standard measurements include frequency, period, ratio, time interval, pulse width, rise/fall time, phase angle, duty cycle, totalize, and peak voltage
* Advanced Arming mMdes for time interval measurements (including use of user specified time or Channel 2 events to delay both Start and Stop Triggers).
* Cosmetic Condition: Very Good
* Working Condition: Presumed Good but Untested
* Other Comments / Notes: This HP Agilent 53132A Universal Counter includes unopened hard-copies of an Operators Manual and a Programmer's Manual. It also includes the following options:

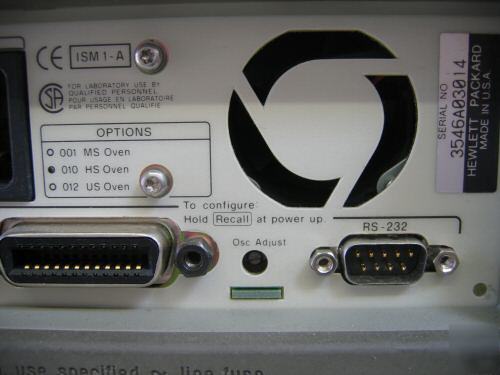

* 010: High Stability Timebase

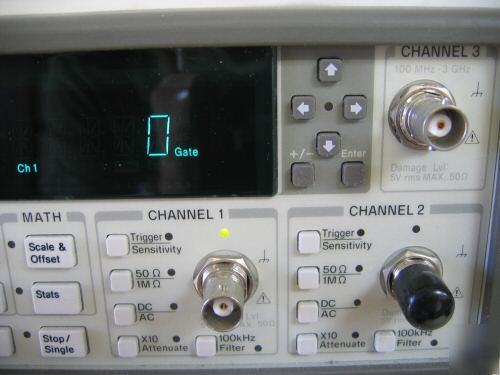

* 030: 3 GHz RF Input Channel 3
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
