Verity SD1024 Spectrograph & FL2000 Flash Lamp Unit Spectral Interferometer and Reflectometer
If you have any questions please call us at: (***)-635-4480

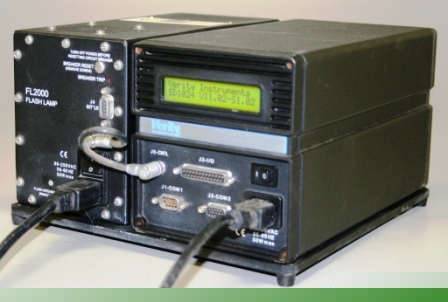

Verity SD1024 & FL2000 Flash Lamp Front Panel
Verity SD1024 Spectrograph & FL2000 Flash Lamp Unit Spectral Interferometer and Reflectometer
* Electrical Requirements: 95 – 250 Volts AC, 50 – 60 Hz, 50 Watts Max.
* Part Number: 1003525 / 2019316
* Electrical Requirements: 95 – 250 Volts AC, 50/60 Hz
* Electrical Requirements: 95 – 250 Volts AC
*****All information Provided below is for the SD1024D.
The SD1024D Series spectrographs are optical emission monitors that integrate sophisticated
embedded processors and software designed to provide intelligent instrument control, data acquisition
and endpoint interface capabilities. The SD1024D Series uses common electronics, application software
and enclosures. The differences between the SD1024D, the SD1024DL, and the SD2048DL are the charge
coupled device (CCD), optical platform and embedded software parameters.
The SD1024 was designed for demanding semiconductor process applications. Its optical system employs a
1024-element, scientific-grade CCD array specifically designed for multi-channel spectroscopy, offering high
performance at a moderate cost. The advantages of the SD1024D include excellent ultraviolet (UV) response
(down to 200nm), stability against degradation under UV exposure, high sensitivity, wide dynamic range and
superior output linearity. The unique optical platform results in highly efficient imaging of spectral information
at the element of the two-dimensional detector array.
* Provides robust endpoint determination
* SpectraViewâ„¢ software provides: Variety of algorithms, Open algorithms and sequences for flexibility
Tool integration via Ethernet, RS232, and DI/O
* Use for endpoint detection, fault detection, and process diagnostics
Information gather from the manufacture.
Specifications above may vary slightly from the actual unit pictured
the posting. This does not mean that the unit doesn’t work, only
that we have not tested or checked out the merchandise, or are not
knowledgeable in that specific item. If you have any questions please
feel free to call (***)-635-4480
